Sensing head size 8 mm x 7.4 mm x 20 mm Type Square type, Unshielded Power source DC Three-wires models Sensing distance 2.5 mm ±15% Setting distance 0 to 1.9 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 15 x 15 x 1 mm Response frequency 1 kHz (Average value) Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Current consumption at 24 VDC, no load: 13 mA max. Control output (Output type) PNP open collector Control output (Switching capacity) 50 mA max. (30 VDC max.) Indicator Operation indicator (orange) Operation mode NO Protective circuit Power supply reverse polarity protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃ Ambient temperature (Storage) -40 to 85 ℃ Ambient humidity (Operating) 35 to 90 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃ Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (2 m) Material Case: Polyarylate Accessories Mounting Bracket

Read more less

Shape Square type Sensing method Distance-setting Sensing distance White paper 200 x 200 mm, setting distance: 200 mm: 5 to 200 mm Setting range White paper 200 x 200 mm: 40 to 200 mm Differential distance 2% max. of setting distance Reflectivity characteristic (black-white error) 2% max. of setting distance Light source Red LED (660 nm) Power supply voltage 10 to 30 VDC ripple (p-p) 10% included Current consumption 35 mA max. Control output NPN/PNP open collector (selectable)30 VDC max.100 mA max.Residual voltage: 1.2 V max. (NPN output)Residual voltage: 2 V max. (PNP output) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting 6-turn endless adjustment (with indicator) Ambient illuminance Incandescent lamp: 5,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67NEMA: 6P (indoors only) Connection method Pre-wired models (Cable length 2 m) Indicator Light indicator (orange), Stability indicator (green) Weight Package: Approx. 170 g Accessories Instruction manual, Mounting bracket, Adjustment driver, Hexagon bolt M4 x 12 (with Spring washers, Flat washers) Material Case: Zinc diecastLens: Methacrylate resinCover: Polyether sulfoneMounting Bracket: Stainless steel (SUS304)

Read more less

  Operating mechanism Snap action ctuator Top roller plunger 12.7 dia. x 4.8Stainless steel roller Frequency 50/60 Hz Contact form 1NC/1NO Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/10 A at 400 VACLamp load (NC): 3 A at 125 VAC/2 A at 250 VAC/1.5 A at 400 VACLamp load (NO): 1.5 A at 125 VAC/1 A at 250 VAC/0.8 A at 400 VACInductive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 400 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 400 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.8 A at 400 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCLamp load (NC): 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCLamp load (NO): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCInductive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCMotor load: 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDC Inrush current 30 A max. Conduit G1/2 (PF1/2) Earth terminal With ground terminal Ambient temperature Operating: -40 to 80 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating speed 1 mm/s to 0.5 m/s Permissible operating frequency Electrical: 30 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance Between each terminal of the same polarities: 100 MΩ min.Between each terminal and non-live-metallic part: 100 MΩ min.at 500 VDC Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminaland ground: 4 kV Durability Electrical: 500,000 operations min. (10 A at 250 VAC)Mechanical: 30 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2 min.Malfunction: 300 m/s2 min. Degree of protection IP67 Classification of protection against electric shock Class I (with ground terminal) Operating Force (OF) Standard value 18.63 N max. Release Force (RF) Standard value 1.96 N min. Pre-Travel (PT) Standard value 2 mm max. Movement Differential (MD) Standard value 1 mm max. Over-Travel (OT) Standard value 5 mm min. Operating Position (OP) Standard value 48±1 mm Total Travel (TT) Reference value 7 mm Free Position (FP) Standard value 51 mm max. Direct Opening Force Standard value 49.03 N min. Direct Opening Travel Standard value 3.2 mm min.

Read more less

Shape Cylinder type Sensing method Diffuse-reflective Sensing distance White paper 300 x 300 mm: 300 mm Spot size 40 x 50 mm (sensing distance: 300 mm) Differential distance 20% max. Light source Red LED (624 nm) Power supply voltage 10 to 30 VDC±10% ripple (p-p) 10% included Current consumption 25 mA max. Control output PNP open collector30 VDC max.100 mA max.Residual voltage: 3 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 0.5 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67DIN40050-9: IP69K Connection method M12 connector models Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 20 gMain Unit: Approx. 10 g Accessories Instruction sheet, M18 nuts Material Case: ABSLens: Methacrylate resin (PMMA)Display: Methacrylate resin (PMMA)Adjustment: POMNut: POM

Read more less

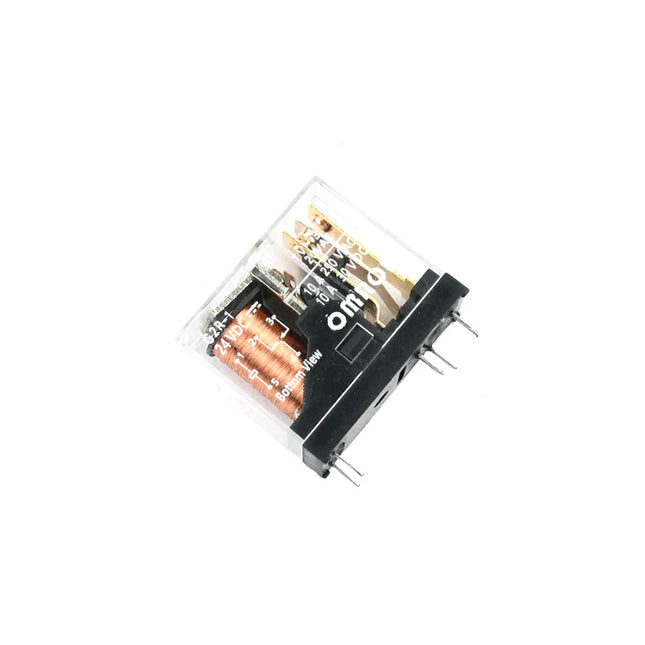

Description It's a 24V DC Transparent 5-Pin general-purpose Relay. Mostly, relays are used to perform switching operation  without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings. Applications:  When galvanic isolation is desired, relays are employed whenever it is necessary to control a high-power or high-voltage circuit with a low-power circuit. Lighting control systems. Industrial process controllers. Traffic control. Motor drives control. Protection systems of electrical power system. Coil Voltage: 24V DC  Specifications Colour Transparent Model No G2R-1 Voltage rating 24V DC Type Relay Current 10A Mounting Style Through Hole No of Pins 5 Brand Omron

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Safety Light Curtains REACH - SVHC: Product: Safety Light Curtains Operating Supply Voltage: 24 VDC Range: 465 mm Brand: Omron Automation and Safety Ingress Protection: IP65 Material: Aluminum Maximum Operating Temperature: + 55 C Minimum Operating Temperature: - 10 C Output Type: PNP Product Type: Optical Sensors Resolution: 20 mm Series: F3SJ-B 1 Subcategory: Sensors Part # Aliases: F3SJB0465P25 Unit Weight: 1.816 kg

Read more less

Configured Specifications Type [Other] Clamp power logger Usage Form Handy Display Liquid crystal 7 segment 4 digits 1 levels Measurement DC Current Range (A) 1.2 to 200 Measurement Application Circuit (Power Logger) Single-phase Two-wire/Three-phase/Three-wire Function Instantaneous Power/Integral Power/Instantaneous Current/Inverter Clamp Inner Diameter (mm) φ23 Material ABS Protective Structure IP30 - - Product Description Easy power check without stopping the device.[Features]Since it is a clamp integrated type, it can be used immediately with single-action installation.・ Just press the REC/STOP key to start power logging・ Recorded data can be easily displayed from the attached software via USB・ An all-in-one model that allows you to easily check power with this 1 unit・ If you want to record for 20 days in a row, you need to charge via USB・ It cannot measure power during charging[Applications]・ Used as an AC clamp for current measurement in various scenes

Read more less

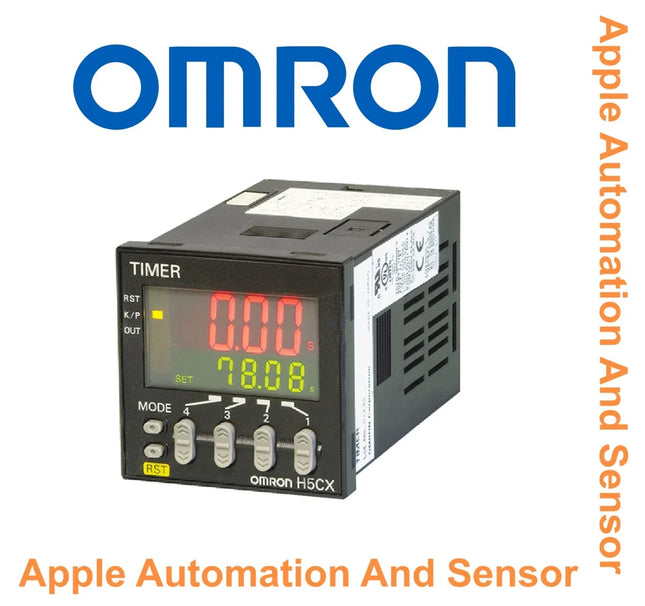

Brand Name Omron Model Omron H5CX-A-N Timer Usage Application Industrial Model No H5CX-A-N Type 1 Timer Availability In Stock View in Hindi ओमरॉन एच5सीएक्स-ए-एन टाइमर Omron H5CX-A-N Timer Dealer Supplier Price in India. We are Dealer, Supplier, Distributor of Omron H5CX-A-N Timer  in India, Mumbai, Pune, Nashik, Aurangabad, Nagpur Vapi, Silvassa, Surat, Vadodara, Rajkot, Gandhidham, Morbi, Indore, Bhopal, Faridabad, Ghaziabad, Noida, Gurgaon, Coimbatore, Bangalore, Hyderabad, Kanpur, Goa, Vishakhapatnam, Cochin, Ernakulum, Ludhiana, Chandigarh, Baddi, Dehradun, China, Korea, Taiwan, Singapore, UAE, Dubai, Malaysia, Sri Lanka, Bangladesh, South Africa. H5CX-A11D-N, H5CX-A11-N, H5CX-A11SD-N, H5CX-A11S-N, H5CX-AD-N, H5CX-A-N, H5CX-ASD-N, H5CX-AS-N, H5CX-BWSD-N, H5CX-L8D-N, H5CX-L8ED-N, H5CX-L8E-N, H5CX-L8-N, H5CX-L8SD-N, H5CX-L8S-N Dealer, Supplier, Distributor of Timer , Omron Fiber Optic Sensor, Omron Application Sensor, Omron Encoder, Omron Temperature Controller, Omron Timer, Omron Counter, Omron Power Supply, Omron Level Controller, Omron Measuring & Monitoring, Omron Control Relay. Omron Industrial Relay, Omron Solid State Relay, Omron Large Basic Switch, Omron Limit Switch, Omron Safety switch. Omron Encoder, Omron Incremental Encoder, Omron Shaft Encoder, Omron Hollow Shaft Encoder, Omron Connector Cable, Omron Reflector, Omron PID Controller, Omron Temperature Controller, Omron SSR, Omron Switches, Omron Proximity Switches. We stock various size, various make Sensor like PNP, NPN, NO, NC, Realy Output, AC, DC, 2 wire, Three Wire, Cylindrical, Square type, Plug in Type, 230VAC, 10-30VDC, 24VDC, PPR, Various Amp Power Supply, HP Capacity VFD, types of I/O PLC, Digital Analog type, Line driver, Totem pole type Rotary Encoder, Incremental Encoder, Shaft Encoder, Hollow Shaft Encoder

Read more less

Number Of Poles 2 Pole Material Plastic Usage/Application Control Panels Voltage Type AC Relay Type Signal Relays Country of Origin Made in India Availability In Stock

Read more less

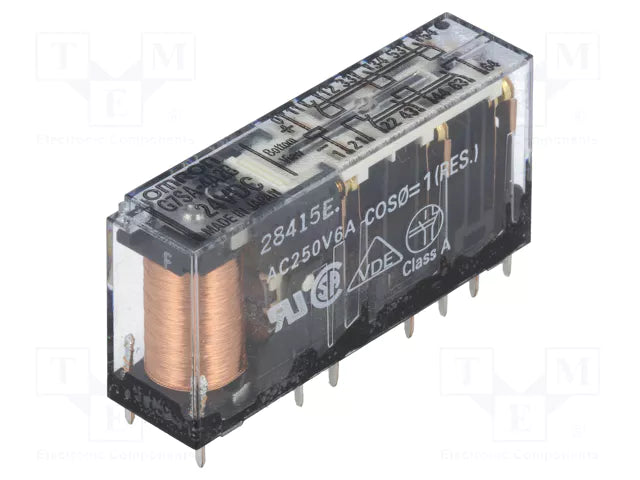

Specification Show similar products (12,337) Manufacturer OMRON Type of relay electromagnetic Contacts configuration SPST-NO x4 + SPST-NC x2 Rated coil voltage 24V DC Contact current max. 6A AC contacts rating @R(at resistive load) 6A / 250V AC DC contacts rating @R(at resistive load) 6A / 30V DC Manufacturer series G7SA-14 Switched voltage max. 125V DC, max. 250V AC Relay variant safety Mounting PCB, socket Coil resistance 1152Ω Body dimensions 50x13x24mm Contact resistance 100mΩ Terminal pitch 5.08mm Coil current 20.8mA Operating temperature -40...85°C

Read more less

Specification Show similar products (12,337) Manufacturer OMRON Type of relay electromagnetic Contacts configuration SPST-NO x4 + SPST-NC x2 Rated coil voltage 24V DC Contact current max. 6A AC contacts rating @R(at resistive load) 6A / 250V AC DC contacts rating @R(at resistive load) 6A / 30V DC Manufacturer series G7SA-14 Switched voltage max. 125V DC, max. 250V AC Relay variant safety Mounting PCB, socket Coil resistance 1152Ω Body dimensions 50x13x24mm Contact resistance 100mΩ Terminal pitch 5.08mm Coil current 20.8mA Operating temperature -40...85°C

Read more less

Product Attributes Type Description Select All Category Relays Solid State Relays (SSR) Mfr Omron Automation and Safety Series G3SD Packaging Bulk Part Status Active Mounting Type Through Hole Relay Type Photo-Coupled Relay (Photorelay) Circuit SPST-NO (1 Form A) Output Type DC Voltage - Input 19.2 ~ 28.8VDC Voltage - Load 3 V ~ 26 V Load Current 1.1 A Termination Style PC Pin Operating Temperature -30°C ~ 100°C Package / Case Module Supplier Device Package - Approval Agency CSA, UR Grade - Qualification - Base Product Number G3SD-Z01
