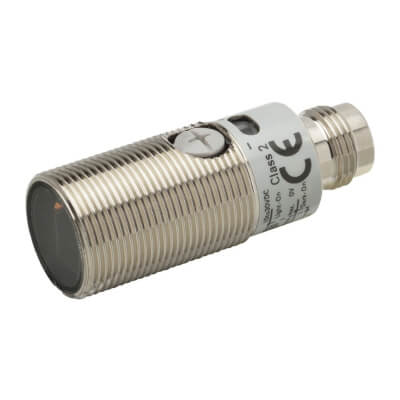

DELIVERY PERIOD : 1-2 WEEKS Shape Cylindrical axial Sensing method Diffuse reflective Sensing distance 1000 mm Setting method Manual adjustment Connection method Connector M12 Output type NPN Operation mode Dark-ON, Light-ON Response time 0.5 ms Material housing Brass, nickel plated Thread size M18 Product Length (unpacked) 48 mm Type of light Polarity free red light Power supply voltage 10-30 V Degree of protection (IP) IP67/IP69K

Read more less

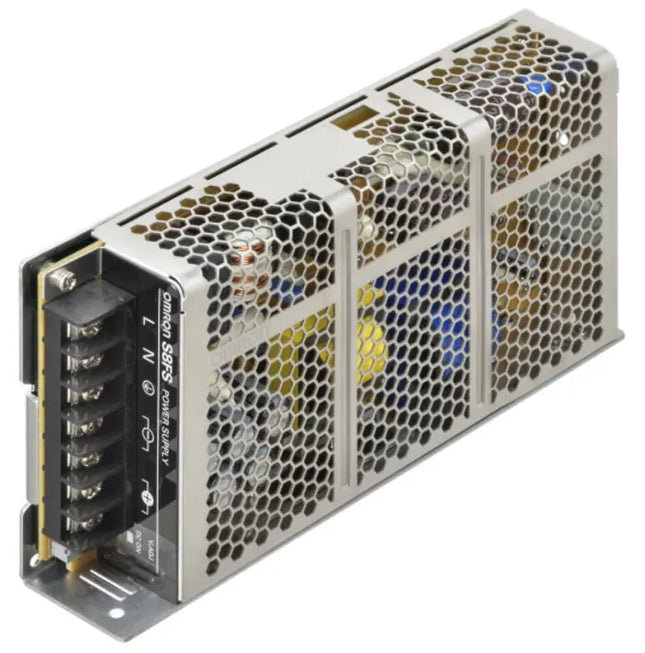

DELIVERY PERIOD : 1-2 WEEKS Brand Omron Output Voltage 12V dc Output Current 12.5A Power Rating 150W Number of Outputs 1 Input Voltage 100 → 240V ac Series S8FS-C

Read more less

Detector Shape Plunger Type Main Body Size Small Environment Standard / Oil Resistant / Dust Proofing Plunger Shape Type [Roller Plungers] Roller Plunger Boot Seal No Roller Lever Shape Type - Lever Shape Type The Vertical One Way Roller Operating Temperature Range -10～80 Acquired Standards CE Protection Structure IP67 Force Required for Push Side O.F. 11.77 Motion to Switching P.T. 1.5 Contact Type Single Pole Double Throw Mechanical Life 1000 Mechanical Operation Frequency 120 Rated Operating Voltage AC100/125V Rated Conductance Current 5 Main Body External Dimension, Width W 18 Main Body External Dimension, Height H 32.9 Main Body External Dimension, Length L 46 Cable Specifications VCTF oil code 3m ((3-core, finish diameter: φ7mm) Detector Element Details - Indicator Light No Movement After the Operation OT 3 Operating Position OP 31.4±0.8 Specification of Terminal Screw tightening system, cord included, right drawer Cord / Cable Length 3 Cord / cable pull-out direction (method) Rightward direction Details Type Connector straight protrusion type (small sealed switch) O.D. φ11×4.7 Function Double insulated, general form with cord Mounting System Side mounting / panel mounting Roller Type Stainless steel-based sintered alloy roller Contact format 1c Wiring Specifications - AC Rated Voltage - DC Rated Voltage - AC Electrical Rating details - DC Electrical Rating details - Note  DELIVERY PERIOD : 1-2 WEEKS

Read more less

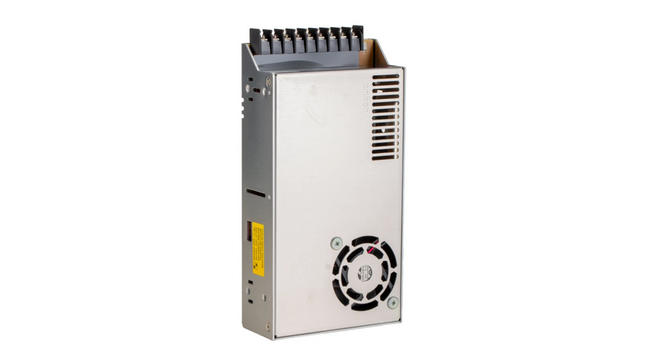

DELIVERY PERIOD : 1-2 WEEKS Brand Omron Output Voltage 24V dc Output Current 14.6A Power Rating 350W Number of Outputs 1 Input Voltage 100 → 240V ac Mounting Type Direct Mount Width 112.5mm Depth 212mm Efficiency 88% Series S8FS-C Minimum Temperature -20°C Weight 800g Maximum Temperature +60°C

Read more less

DELIVERY PERIOD : 1-2 WEEKS Type Enclosed Mounting method Direct mounting Phase Single Power output 50 W Efficiency 86 % Output voltage 24 V Rated output current 2.2 A Temperature range -20-60 °C Features Terminal block facing forward Terminal type Screw Communication port(s) None Alarm function - Number of output branches 1 Rated supply voltage at AC 50 Hz 100-240 V Allowable supply voltage AC 85-264 V Allowable supply voltage DC 120-370 V Product Width (unpacked) 97 mm Product Height (unpacked) 38 mm Product Depth (unpacked) 129 mm

Read more less

Shape Standard Type Detection Distance 5 Head maximum width 26 Head maximum height 22 Head maximum, depth 7 Detection method Through-beam type (with slot) Luminescence Method Infrared light Operation mode Dark-ON/ Light-ON (2 outputs) Output mode NPN Open-collector output Connection method Connector model (4 poles) Indicator Light Mode Light indicator (orange LED) Standard detected subject Opaque: 2 × 0.8 mm minimum Cable specification - Cable length - Protection structure IP50 DELIVERY PERIOD : 1-2 WEEKS

Read more less

Application Power Contact Configuration 2c Latch function NA Terminal shape Socket / plug-in Contact rated current (minimum value for AC and DC) 5 Coil rated voltage (DC) 24 Coil rated voltage (AC) - Dimension height 52.5 Dimension width 34.5 Dimension depth 34.5 Classification Built-in Operation Indicator Lamp Type Operation Indicator Lamp Available Latching Relay NA Contact mechanism Single Protective Structure In-Case Type Switching Capacity - Coil Contact Cord - -V DELIVERY PERIOD : 1-2 WEEKS

Read more less

DELIVERY PERIOD : 1-2 WEEKS Shape/Structure Enclosed Limit switches ctuator Hinge roller lever 12.7 dia. x 7.5 Frequency 50/60 Hz Contact form SPDT Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 480 VACLamp load (NC): 3 A at 125 VAC/2.5 A at 250 VAC/1.5 A at 480 VACLamp load (NO): 1.5 A at 125 VAC/1.25 A at 250 VAC/0.75 A at 480 VACInductive load: 10 A at 125 VAC/10 A at 250 VAC/2.5 A at 480 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 480 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.75 A at 480 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.5 A at 125 VDC/0.25 A at 250 VDCLamp load (NC): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCLamp load (NO): 1.5 A at 8 VDC/1.5 A at 14 VDC/1.5 A at 30 VDC/0.4 A at 125 VDC/0.2 A at 250 VDCInductive load: 6 A at 8 VDC/6 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NC): 5 A at 8 VDC/5 A at 14 VDC/5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDCMotor load (NO): 2.5 A at 8 VDC/2.5 A at 14 VDC/2.5 A at 30 VDC/0.05 A at 125 VDC/0.03 A at 250 VDC Inrush current NC: 30 A max.NO: 15 A max. Ambient temperature Operating: -10 to 80 ℃ (with no icing) Ambient humidity 35 to 95 % Permissible operating frequency Electrical: 20 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 15 mΩ max. (initial value for the built-in switch whentested alone) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 minBetween each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min Durability Electrical: 500,000 operations min.Mechanical: 10 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 1.5 mm double amplitude, Contact opening: 1 ms max. at the free position and the total travel position. Shock resistance Destruction: 1,000 m/s2 max. Degree of protection IP67

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer Omron Manufacturer Part # S8VK-C12024

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Relay Sockets & Fixings Delivery Restrictions:  Mouser does not sell this product in your region. RoHS:  Details Product: Relay Sockets Accessory Type: DIN Rail Mount Associated Relay Series: PFP-100N, PFP-M Termination Style: Screw Brand: Omron Automation and Safety Product Type: Relay Sockets & Hardware Series: PTF14A Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: 1340942 PTF14AE Unit Weight: 70 g

Read more less

Operating indicator: LED Coil surge killer: CR Degree of protection: Closed type (cover) Terminal structure: Plug-in terminal Contact form: 4PDT Contact method: Single Mounting method: Socket Power consumption: Approx. 0.9 to 1.3 VA 60 Hz DELIVERY PERIOD : 1-2 WEEKS

Read more less

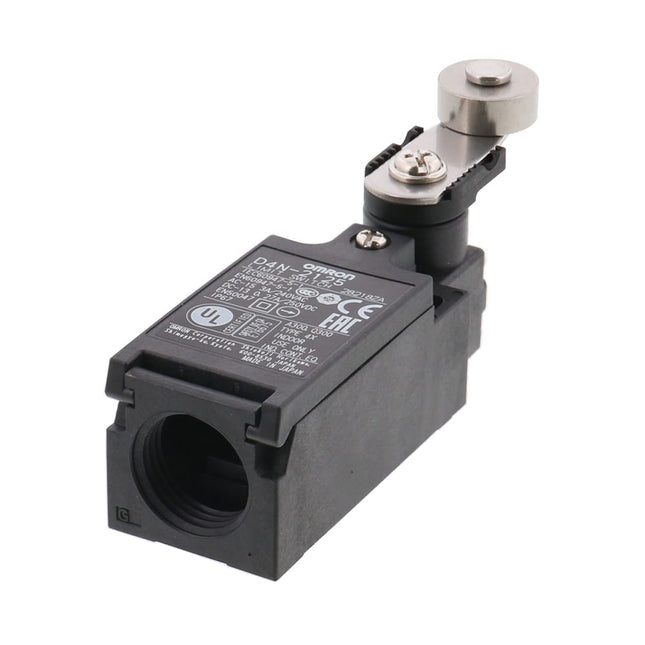

Detector Shape Roller Lever Type (rotation) Main Body Size Small Environment Standard Plunger Shape Type - Roller Lever Shape Type Standard Lever Shape Type - Rod Shape Type - Operating Temperature Range -30～70 Acquired Standards TUV / UL / GB(CCC) / EN Protection Structure IP67 Force Required for Push Side O.F. 5 Motion to Switching P.T. - Angle to Switching P.T 18-27 Max. Stroke T.T - Max. Angle T.T 80 Contact Type 2-circuit Double-break Contact Point Type - Mechanical Life 1500 Mechanical Operation Frequency 30 Rated Operating Voltage DC125V / DC250V Rated Conductance Current 2.5 Main Body External Dimension, Width W 31 Main Body External Dimension, Height H 47 Main Body External Dimension, Length L 82.5 Lever Length R 26 Detector Element Details Roller lever Indicator Light - Movement After the Operation OT - Operating Position OP - Torque necessary for operation, OF - Conduit Size G1/2 Specification of Terminal - Details Type 1 Conduit Shape 2 Contact Series O.D. φ17.5×6.8 Mounting System Front mounting Direction of Operation Snap action (direct circuit opening operation included) Roller Type Resin lever / resin roller R26 Contact format 1NC/1NO Release Key Type - Lock / Release System - Built-in Switch Specification - AC Rated Voltage - DC Rated Voltage - DELIVERY PERIOD : 1-2 WEEKS
