DELIVERY PERIOD : 1-2 WEEKS Shape Module type Terminal type Screw terminal (M3) Input type Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input Control output 1 Voltage output (for driving SSR) 2-points Control output 2 Transistor output 2-points Power supply voltage 24 VDC Number of event input 2 point Heater burnout /SSR failure detector 2 points Communications method RS-485 (two-wire, half duplex)

Read more less

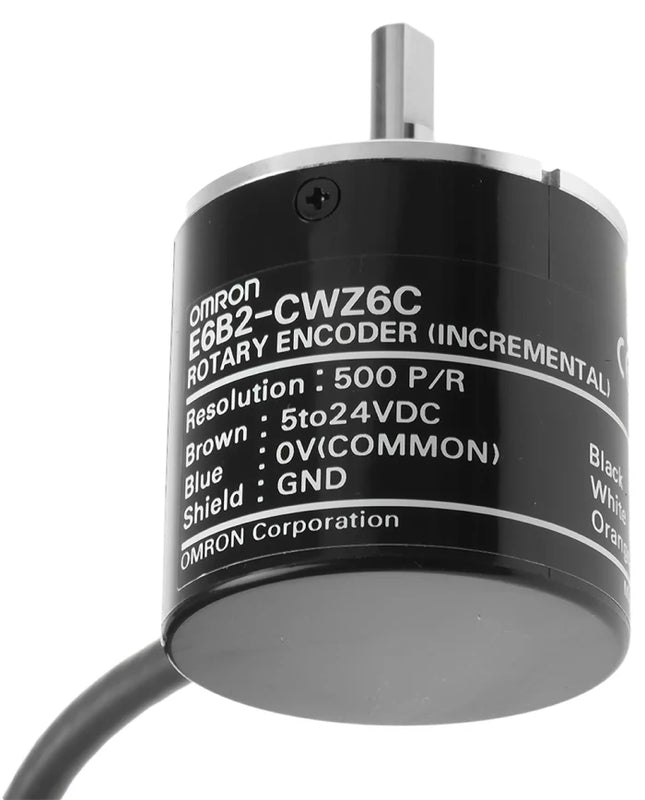

DELIVERY PERIOD : 1-2 WEEKS Brand OMRON Encoder Technology Incremental Series E6B2 Pulses Per Revolution 500 Maximum Revolutions 6000rpm Output Signal Type NPN Open Collector Shaft Type Solid Shaft Diameter 6mm Supply Voltage 5 → 24 V dc IP Rating IP50 Overall Height 59mm Switching Frequency 100 kHz

Read more less

Type: Through-beam Photoelectric Sensor Sensing Distance: 15 meters Output: NPN Operating Voltage: 12 to 24VDC Light Source: Infrared LED Cable Length: 2 meters DELIVERY PERIOD : 1-2 WEEKS

Read more less

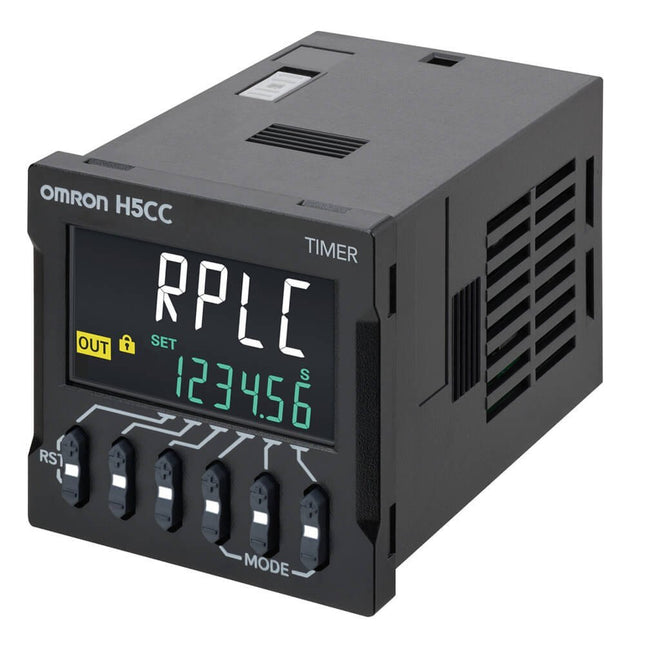

Type [Timer] Timer Display method Liquid Crystal Mounting Method - Time specifications 0.001s to 9999h Power Supply Voltage AC/DC Output Method Relay Representative Standard CE / UL / CUL / CCC Dimension vertical 48 Dimension width 48 Dimension depth 83.9 Rated power supply voltage AC24/DC12 to 24 Time ranges = N 10 range Contact Configuration Time limit 1c + instant 1c Terminal shape Plug-in terminal Digits = N (counter) 4 digits Pre-scale function (counter) × Input mode (counter) Addition/deduction 瞬時接点 - DELIVERY PERIOD : 1-2 WEEKS

Read more less

DELIVERY PERIOD : 1-2 WEEKS Contact resistance 100 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Reset time 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Maximum operating frequency Mechanical: 36000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 1000 MΩ min. (at 500 VDC)Between contacts of different polarity: 1000 MΩ min. (at 500 VDC)Between contacts of same polarity: 1000 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 4000 VAC 50/60 Hz 1 minBetween contacts of different polarity (Between pole 3 and pole 5_pole 4 and pole 6_pole 5 and pole 6): 2500 VAC 50/60 Hz 1 minBetween contacts of different polarity (Except for between pole 3 and pole 5_pole 4 and pole 6_pole 5 and pole 6): 4000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1500 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 100 m/s2 Endurance (Mechanical) 10,000,000 operations min. (switching frequency 36,000 operations/h) Endurance (Electrical) 100,000 operations min. (rated load) Failure rate 5 VDC 1 mA (failure level: Preference value, Switching frequency: 300 operations per minute) Ambient temperature (Operating) -40 to 85 ℃ (with no freezing or condensation)

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Limit Switches RoHS:  Details Illuminated: Non-Illuminated Contact Form: SPST Actuator: Lever Current Rating: 5 A Voltage Rating AC: 250 VAC Voltage Rating DC: 250 VDC Operating Force: 19.6 N Termination Style: Screw Mounting Style: Panel Mount IP Rating: IP65 Actuator Style: Lever Brand: Omron Automation and Safety Product Type: Limit Switches Series: HL-5000 Factory Pack Quantity: 1 Subcategory: Switches Type: Standard Part # Aliases: HL5050 Unit Weight: 340.200 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no icing) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 120 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer Omron Automation and Safety Series H3DKZ Part Status Active Mounting Type DIN Rail Relay Type Mechanical Relay Function On-Delay Circuit DPDT (2 Form C) Delay Time 0.1 Sec ~ 1200 Hrs Contact Rating @ Voltage 5A @ 250VAC Voltage - Supply 24 ~ 240VAC/DC Termination Style Screw Terminal Timing Adjustment Method Screwdriver Slot Timing Initiate Method Input Voltage

Read more less

Type Total counter Display method LCD Display Digits 7 digits Count input (CH = N) 1 Mounting Method Panel Panel cut dimensions [Other] 45x22.2 Power Supply Voltage - Output NA Prescale NA Representative Standard CE / UL / CSA Dimension vertical 24 Dimension width 48 Dimension depth 48.5 Classification Time counter Product Type Free voltage input/does not include backlight/includes reset key (standard) MAX input frequency (MAX counting speed) (Hz) - Power supply voltage details 3-V lithium battery Computing Method Addition Reset function External/manual reset Protective Structure IP66 Color Light gray (5Y7/1) - Input method (logic) - Display content (code) 0.0 h to 999999.9 h/0.0 h to 3999d23.9 h DELIVERY PERIOD : 1-2 WEEKS

Read more less

Application SSR Latch function NA Terminal shape Screw Fastening Safety standards UL / TUV / CSA Dimension height 100 Dimension width 80 Dimension depth 90 Insulation method Phototriac Coupler Zero cross function Available Operation Indicator Lamp Available Input rated voltage DC 12–24 Applicable output load 15/AC 100 to 240 DELIVERY PERIOD : 1-2 WEEKS

Read more less

Type Total counter Display method LCD Display Digits 8 digits Count input (CH = N) 1 Mounting Method Panel Panel cut dimensions [Other] 45x22.2 Power Supply Voltage - Output NA Prescale NA Representative Standard CE / UL / CSA Dimension vertical 24 Dimension width 48 Dimension depth 48.5 Classification Total counter Product Type Free voltage input/does not include backlight/includes reset key (standard) MAX input frequency (MAX counting speed) (Hz) 20Hz Power supply voltage details 3-V lithium battery Computing Method Addition Reset function External/manual reset Protective Structure IP66 Color Black (N1.5) Display content (code) 0 to 99999999 Input method (logic) -DELIVERY PERIOD : 1-2 WEEKS -

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:  Details Sensing Method: Through Beam Sensing Distance: 20 m Light Source: Red LED Connection Method: M12 Output Configuration: NPN Minimum Operating Temperature: - 25 C Maximum Operating Temperature: + 55 C Brand: Omron Automation and Safety Features: Cylindrical, Straight type, Metal housing Length: 48 mm Operating Supply Voltage: 30 V Product Type: Photoelectric Sensors Series: E3FA/E3RA/E3RB Factory Pack Quantity: 1 Subcategory: Sensors Width: 18.5 mm Part # Aliases: E3FBTN21
