DELIVERY PERIOD : 1-2 WEEKS Shape Square type Sensing method Diffuse-reflective Sensing distance White paper 200 x 200 mm: 700 mm Differential distance 20% max. of sensing distance Light source Infrared LED (940 nm) Power supply voltage 100 to 240 VAC±10% 50/60 Hz24 to 240 VDC±10% ripple (p-p) 10% max. Power consumption 2 W max. Control output Relay output (SPDT)250 VAC 3 A (cosφ= 1) max.5 VDC 10 mA min. Life expectancy (relay output) Electrical: 100 thousand times or more (switching frequency 1800 times/hour)Mechanical: 50 million times or more (switching frequency 18000 times/hour) Operation mode Light-ON/Dark-ON selectable Response time Operate or reset: 30 ms max. Sensitivity setting Single-turn adjustment Timer function Select from ON-delay, OFF-delay, or One-shot delay0.1 to 5 s Ambient illuminance Incandescent lamp: 3,000 lx max. Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -30 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 45 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 2000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hMalfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directionsMalfunction: 100 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP66 Connection method Terminal block models Indicator Operation indicator (red) Weight Package: Approx. 160 g Accessories Instruction manual, Mounting bracket, Nut, Terminal protection cover, One set of cable connection nuts Material Case: ABSLens: Methacrylate resinCover: PolycarbonateMounting Bracket: Iron

Read more less

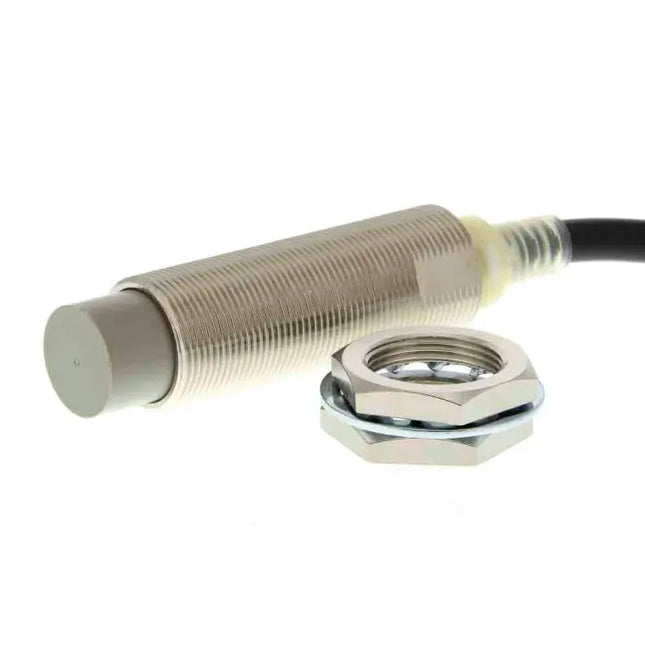

DELIVERY PERIOD : 1-2 WEEKS Brand OMRON Thread Size M18 Sensor Technology Inductive Detection Range 10 mm Body Style Threaded Barrel Output Function NO Digital Switching Output Type 2-Wire Connection Type Pre-Cabled Cable Length 2m Supply Voltage 24 → 240 V ac Length 72mm IP Rating IP67 Mounting Type Non-Flush Maximum dc Voltage 55V Minimum Operating Temperature -40°C Maximum Operating Temperature +85°C Maximum Switching Frequency 25Hz Switching Current 300 mA Switching Frequency 25 Hz Series E2E2 Depth 14.8mm Shielding Unshielded

Read more less

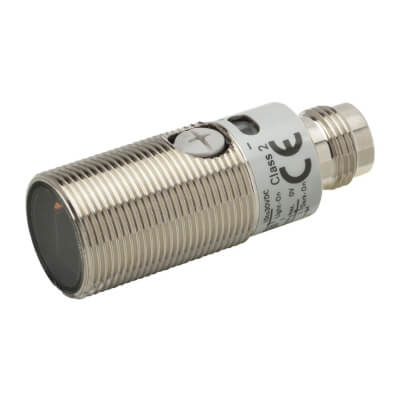

DELIVERY PERIOD : 1-2 WEEKS Shape Cylindrical axial Sensing method Retro-reflective Sensing distance 4000 mm Sensing distance (min.) 100 mm Setting method Manual adjustment Connection method Connector M12 Output type PNP Operation mode Dark-ON, Light-ON Response time 0.5 ms Material housing Brass, nickel plated Thread size M18 Product Length (unpacked) 48 mm Type of light Polarized red light Power supply voltage 10-30 V Features M.S.R. Degree of protection (IP) IP67/IP69K

Read more less

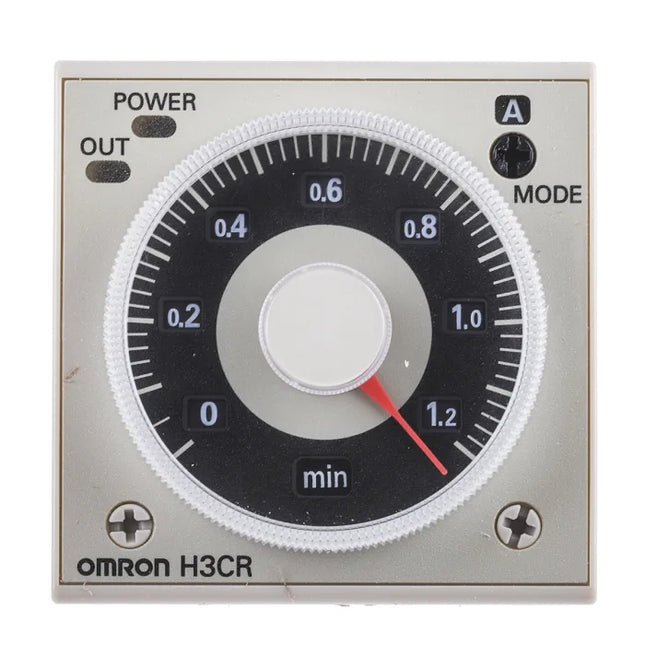

DELIVERY PERIOD : 1-2 WEEKS Brand OMRON Supply Voltage 12 → 48 V dc, 24 → 48V ac Mounting Type DIN Rail, Panel Mount Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output Time Range 0.05 s → 300h Number of Contacts 2 Number of Timer Functions Multi Function Contact Configuration DPDT Time Increment Hours, Seconds Maximum Current 5A Maximum Voltage 125 V dc, 250V ac Terminal Type 11-Pin Connector Switch Configuration DPDT Width 48mm Minimum Voltage 12 V dc, 24 V ac Power Supply External Maximum Operating Temperature +55°C Depth 81.6mm Length 48mm Series H3CR Minimum Operating Temperature -10°C Time Delay 0.1s Contact Material Ag Alloy

Read more less

Sensing head size M18 Type Cylinder type (with screw), Unshielded Power source DC 2-wire models Sensing distance 14 mm ±10% Setting distance 0 to 11.2 mm Differential distance 10% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 30 x 30 x 1 mm Response frequency 400 Hz Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Leakage current 0.8 mA max. Control output (Switching capacity) 3 to 100 mA Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m) Indicator Operation indicator (red), Operation setting indicator (green) Operation mode NO Polarity Polarity Self-diagnostic output Diagnostic output 50 mA (delay time: 0.3 to 1 s) Protective circuit Output short-cut protectionSurge suppressor Ambient temperature (Operating) -25 to 70 ℃(with no freezing or condensation) Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation) Ambient humidity (Operating) 35 to 95 % (with no condensation) Ambient humidity (Storage) 35 to 95 % (with no condensation) Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67Company standard: Oil-proof Connection method Pre-wired models (2 m) Weight Package: Approx. 130 g Material Case: Brass nickel platingSensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating Accessories Instruction manual, Clamping nuts, Toothed washers

Read more less

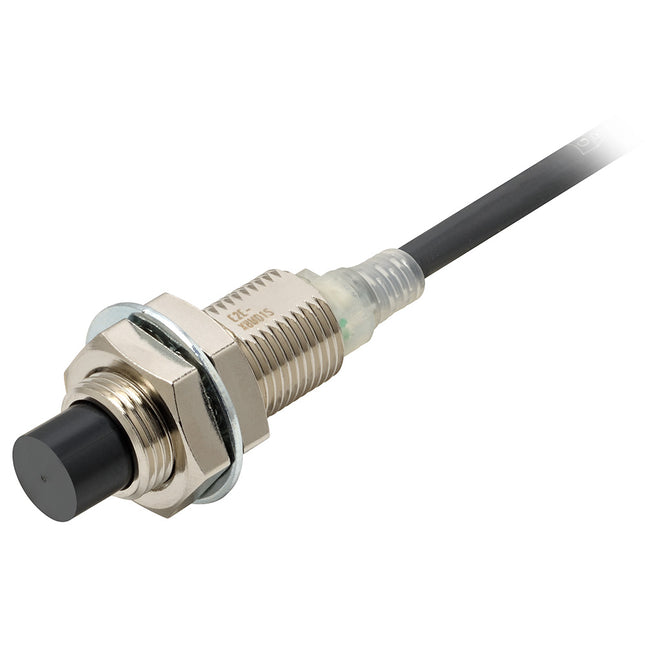

DELIVERY PERIOD : 1-2 WEEKS Size M8 M12 Shielded Shielded Shielded Unshielded Model E2E-X2D[] E2E-X3D[] E2E-X8MD[] Sensing distance 2 mm ±10% 3 mm ±10% 8 mm ±10% Set distance *1 0 to 1.6 mm 0 to 2.4 mm 0 to 6.4 mm Differential travel 15% max. of sensing distance 10% max. of sensing distance Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer toEngineering Data on Data Sheet.) Standard sensing object Iron,8 × 8 × 1 mm Iron,12 × 12 × 1 mm Iron,30 × 30 × 1 mm Response frequency *2 1.5 kHz 0.8 kHz Power supply voltage(operating voltage range) 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) Leakage current 0.8 mA max. Controloutput Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models Residualvoltage 3 V max. (Load current: 100 mA, Cable length: 2 m) Indicators D1 Models: Operation indicator (red) and setting indicator (green)D2 Models: Operation indicator (red) Operation mode(with sensing objectapproaching) D1 Models: NOD2 Models: NCRefer to the timing charts under I/O Circuit Diagrams on Data Sheet for details. Diagnostic output delay 0.3 to 1 s Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output) Ambient temperaturerange Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation) Ambient humidity range Operating/storage: 35% to 95% (with no condensation) Temperature influence ±15% max. of sensing distance at 23°Cin the temperature range of -25 to 70°C ±10% max. of sensing distance at 23°C inthe temperature range of -25 to 70°C Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Zdirections Shock resistance Destruction: 500 m/s2 10 times each in X,Y, and Z directions Destruction: 1,000 m/s2 10 times each in X,Y, and Z directions Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistantConnector Models: IEC 60529 IP67 Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wiredConnector Models (Standard cable length: 0.3 m) Weight(packedstate) Pre-wiredModels Approx. 60 g Approx. 70 g Pre-wiredConnectorModels --- Approx. 40 g(Shielded Models only) ConnectorModels Approx. 15 g Approx. 25 g Materi-als Case Stainless steel (SUS303) Nickel-plated brass Sensing surface PBT Clamping nuts Nickel-plated brass Toothed washer Zinc-plated iron Accessories Instruction manual     Size M18 M30 Shielded Shielded Unshielded Shielded Unshielded Model E2E-X7D[] E2E-X14MD[] E2E-X10D[] E2E-X20MD[] Sensing distance 7 mm ±10% 14 mm ±10% 10 mm ±10% 20 mm ±10% Set distance *1 0 to 5.6 mm 0 to 11.2 mm 0 to 8 mm 0 to 16 mm Differential travel 10% max. of sensing distance Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer toEngineering Data on Data Sheet.) Standard sensing object Iron,18 × 18 × 1 mm Iron, 30 × 30 × 1 mm Iron,54 × 54 × 1 mm Response frequency *2 0.5 kHz 0.4 kHz 0.1 kHz Power supply voltage(operating voltage range) 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) Leakage current 0.8 mA max. Controloutput Load current 3 to 100 mA, Diagnostic output: 50 mA for -D1(5)S Models Residualvoltage 3 V max. (Load current: 100 mA, Cable length: 2 m) Indicators D1 Models: Operation indicator (red) and setting indicator (green)D2 Models: Operation indicator (red) Operation mode(with sensing objectapproaching) D1 Models: NOD2 Models: NCRefer to the timing charts under I/O Circuit Diagrams on Data Sheet for details. Diagnostic output delay 0.3 to 1 s Protection circuits Surge suppressor, Load short-circuit protection (for control and diagnostic output) Ambient temperaturerange Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation) Ambient humidity range Operating/storage: 35% to 95% (with no condensation) Temperature influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Zdirections Shock resistance Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions Degree of protection Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistantConnector Models: IEC 60529 IP67 Connection method Pre-wired Models (Standard cable length: 2 m), Connector Models, or Pre-wiredConnector Models (Standard cable length: 0.3 m) Weight(packedstate) Pre-wiredModels Approx. 130 g Approx. 175 g Pre-wiredConnectorModels --- --- ConnectorModels Approx. 40 g Approx. 90 g Materi-als Case Nickel-plated brass Sensing surface PBT Clamping nuts Nickel-plated brass Toothed washer Zinc-plated iron Accessories Instruction manual

Read more less

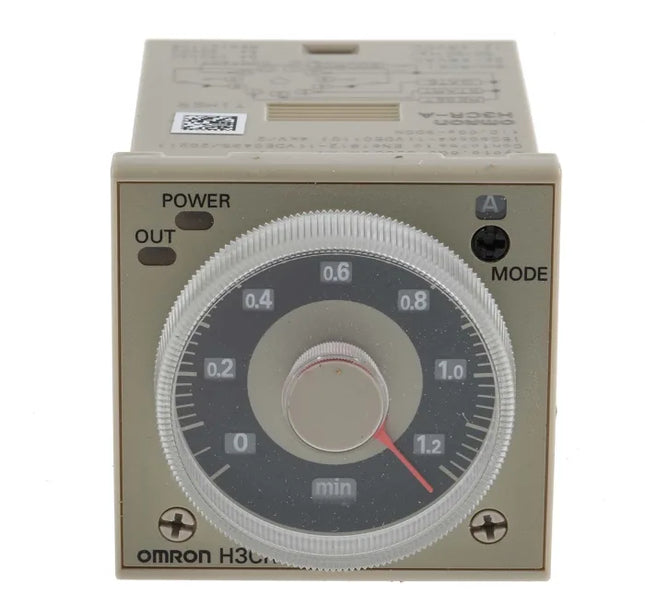

Brand OMRON Supply Voltage 100 → 125 V dc, 100 → 240V ac Mounting Type DIN Rail Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, ON Delay, Signal OFF Delay, Signal ON/OFF Delay Time Range 0.05 s → 300h Number of Contacts 2 Number of Timer Functions Multi Function Contact Configuration DPDT Time Increment Hours, Minutes, Seconds Maximum Current 5A Maximum Voltage 125 V dc, 240V ac Switch Configuration DPDT Terminal Type Crimp Width 48mm Minimum Voltage 100V ac/dc Power Supply Internal Series H3CR Maximum Operating Temperature +55°C Minimum Current 10mA Depth 81.6mm Length 48mm Minimum Operating Temperature -10°C Country of Origin Indonesia

Read more less

DELIVERY PERIOD : 1-2 WEEKS Brand OMRON Supply Voltage 12 → 24V dc Mounting Type Panel Mount Mode of Operation A, A1, A2, A3, B, B1, D, E, F, S, Z Time Range 0.001 s → 9.999 s, 0.01 s → 99.99 s, 0.1 m → 999.9 min, 0.1 s → 999.9 s, 1 min → 9999 min, 1 s → 99 min, 1 s → 9999s Number of Contacts 8 Number of Timer Functions Multi Function Time Increment Minutes, Seconds Maximum Current 5A Maximum Voltage 24V dc Switch Configuration SPDT Terminal Type 8-Pin Connector Power Supply Internal Width 48mm Minimum Voltage 24V dc Maximum Operating Temperature +55°C Minimum Current 10mA Depth 66.7mm Length 48mm Minimum Operating Temperature -10°C Country of Origin China

Read more less

Type [Timer] Timer Display method Analog Mounting Method PCB Panel cut dimensions 48x48 Time specifications 0.05s to 300h Power Supply Voltage AC/DC Output Method Relay Representative Standard CE / UL / CCC / CSA Dimension vertical 48 Dimension width 48 Dimension depth 52.3 Rated power supply voltage AC100 to 240/DC100 to 125 Time ranges = N 18 range Contact Configuration Time Limit 2c Terminal shape Plug-in terminal Front cover color PNP input

Read more less

Detector Shape Roller Lever Type (rotation) Main Body Size Small Environment Standard / Weather Resistance Plunger Shape Type - Boot Seal - Roller Lever Shape Type Standard Rod Shape Type - Operating Temperature Range -10～70 Acquired Standards TUV / EN Protection Structure IP67 Force Required for Push Side O.F. 5.69 Motion to Switching P.T. - Angle to Switching P.T 10±3 Max. Stroke T.T - Max. Angle T.T - Contact Type Single Pole Double Throw Mechanical Life 1000 Mechanical Operation Frequency 120 Rated Operating Voltage DC30V or Less / AC240/250V Rated Conductance Current 4 Main Body External Dimension, Width W 40 Main Body External Dimension, Height H 17.4 Main Body External Dimension, Length L 65 Lever Length R 38 Cable Specifications VCTF Oil Resistance Code 3m (0.75mm2 4 core Finished Outer Diameter 7.6mm) Detector Element Details High sensitivity type Indicator Light No Movement After the Operation OT - Operating Position OP - Torque necessary for operation, OF - Rubber material (scraper) - Box shape - Conduit Size - Specification of Terminal Ground terminal (general load type) included Cord / Cable Length 3 Details Type - O.D. φ3.2 Mounting System Front mounting Roller Type - Contact format 1c Wiring Specifications - AC Rated Voltage - DC Rated Voltage - AC Electrical Rating details - DC Electrical Rating details - Note -

Read more less

Manufacturer: Omron Product Category: Proximity Sensors RoHS:  Details REACH - SVHC: Details Sensing Method: Inductive Sensing Distance: 2 mm Mounting Style: Wire Output Configuration: NO Brand: Omron Automation and Safety Height: 15 mm Length: 37 mm Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Operating Supply Voltage: 30 V Product Type: Proximity Sensors Series: E2E Factory Pack Quantity: 1 Subcategory: Sensors Width: 15 mm Part # Aliases: 7498263 E2EX2D1N Unit Weight: 15 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS Ratings   Electrical ratings 1 mA at 5 VDC to 30 mA at 30 VDC (resistive load)   Characteristics   Degree of protection IP67 Durability *1 Mechanical 10,000,000 operations min. Electrical 5,000,000 operations min. (at 30 mA 30 VDC resistive load) Operating speed 5 to 500 mm/s Operatingfrequency Mechanical 120 operations/min. Electrical 60 operations/min. Insulation resistance 100 MΩ min. at 250 VDC between each terminal and non-current-carrying metal parts Contact resistance With 1 m cable:700 mΩ max. (initial value)With 3 m cable:1.9 Ω max. (initial value)With 5 m cable:3.1 Ω max. (initial value) Dielectricstrength(50/60 Hz1 min) Between terminals ofsame polarity 250 VAC (at TTP) Between each terminaland non-current-carrying metal parts 1,000 VAC (600 VAC for M5 model) Vibrationresistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude *2 Shockresistance Mechanical 1,000 m/s2 max. Malfunction 300 m/s2 max. *3 Ambient operating temperature -10°C to +70°C (with no icing) Ambient operating humidity 35% to 95% RH Actuator strength 14.7 N *4 Weight Switch M5: Approx. 14 g, M8: Approx. 20 g, M10: Approx. 21 g Cable Approx. 10 g/m
