DELIVERY PERIOD : 1-2 WEEKS  Shape Square type Sensing method Through-beam type Sensing distance 10 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 °Receiver: 3 to 15 ° Light source Red LED (660 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max.Receiver: 20 mA max. Control output NPN open collector26.4 VDC max.100 mA max.Residual voltage: 1 V max. (Load current Less than 10 mA)Residual voltage: 2 V max. (Load current 10 to 100 mA) Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3,000 lx max.Sunlight: 10,000 lx max. Ambient temperature range (Operating) -40 to 55 ℃ (with no freezing or condensation) Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation) Ambient humidity range (Operating) 35 to 85 % (with no condensation) Ambient humidity range (Strage) 35 to 95 % (with no condensation) Insulation resistance 20 MΩ min. (500 VDC megger) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method M8 connector models Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange) Weight Package: Approx. 30 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT)Lens: Denatured Polyarylate

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: General Purpose Relays RoHS:  Details Product: Power Relays Type: Standard Coil Voltage: 24 VDC Relay Contact Form: 1 Form C (SPDT-NO, NC) Contact Current Rating: 10 A Contact Termination: Solder Pin Mounting Style: Through Hole Switching Voltage: 380 VAC, 125 VDC Coil Termination: Solder Pin Coil Type: Non-Latching Coil Resistance: 1.1 kOhms Coil Current: 21.8 mA Contact Material: Silver Cadmium Oxide (AgCdO) Series: G2R  Length: 29 mm Width: 12.7 mm Height: 25.3 mm Brand: Omron Electronics Contact Form: SPDT (1 Form C) Power Consumption: 530 mW Product Type: General Purpose Relays Factory Pack Quantity: 100 Subcategory: Relays Part # Aliases: G2R1DC24 G2R-1-DC24-BY-OMI G2R1DC24BYOMI Unit Weight: 17 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Size M18 Mounting type Quasi-flush Sensing distance 8 mm Output type PNP Operation mode NO Connection method Connector M12 Material housing Brass, nickel plated Cable specifications - Overall length of sensor 59 mm Thread length 39 mm Degree of protection (IP) IP67

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Operating mechanism Snap action ctuator Top roller plunger 12.7 dia. x 4.8Stainless steel roller Frequency 50/60 Hz Contact form 1NC/1NO Load General load Ratings (AC): Non-Inductive load Resistive load: 10 A at 125 VAC/10 A at 250 VAC/10 A at 400 VACLamp load (NC): 3 A at 125 VAC/2 A at 250 VAC/1.5 A at 400 VACLamp load (NO): 1.5 A at 125 VAC/1 A at 250 VAC/0.8 A at 400 VACInductive load: 10 A at 125 VAC/10 A at 250 VAC/3 A at 400 VACMotor load (NC): 5 A at 125 VAC/3 A at 250 VAC/1.5 A at 400 VACMotor load (NO): 2.5 A at 125 VAC/1.5 A at 250 VAC/0.8 A at 400 VAC Ratings (DC): Non-Inductive load Resistive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCLamp load (NC): 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCLamp load (NO): 3 A at 8 VDC/3 A at 14 VDC/3 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDCInductive load: 10 A at 8 VDC/10 A at 14 VDC/6 A at 30 VDC/0.8 A at 125 VDC/0.4 A at 250 VDCMotor load: 6 A at 8 VDC/6 A at 14 VDC/4 A at 30 VDC/0.2 A at 125 VDC/0.1 A at 250 VDC Inrush current 30 A max. Conduit G1/2 (PF1/2) Earth terminal With ground terminal Ambient temperature Operating: -40 to 80 ℃ (with no icing) Ambient humidity 95 %RH max. Permissible operating speed 1 mm/s to 0.5 m/s Permissible operating frequency Electrical: 30 operations / 1 minute max.Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 25 mΩ max. Insulation resistance Between each terminal of the same polarities: 100 MΩ min.Between each terminal and non-live-metallic part: 100 MΩ min.at 500 VDC Impulse withstand voltage Between each terminal of the same polarities: 2.5 kVBetween each terminaland ground: 4 kV Durability Electrical: 500,000 operations min. (10 A at 250 VAC)Mechanical: 30 million operations min. Vibration resistance Malfunction: 10 to 55 Hz, 0.75 mm single amplitude Shock resistance Destruction: 1000 m/s2 min.Malfunction: 300 m/s2 min. Degree of protection IP67 Classification of protection against electric shock Class I (with ground terminal) Operating Force (OF) Standard value 18.63 N max. Release Force (RF) Standard value 1.96 N min. Pre-Travel (PT) Standard value 2 mm max. Movement Differential (MD) Standard value 1 mm max. Over-Travel (OT) Standard value 5 mm min. Operating Position (OP) Standard value 48±1 mm Total Travel (TT) Reference value 7 mm Free Position (FP) Standard value 51 mm max. Direct Opening Force Standard value 49.03 N min. Direct Opening Travel Standard value 3.2 mm min.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches RoHS:  Details Illuminated: Non-Illuminated Contact Form: DPST Actuator: Roller Plunger Current Rating: 5 A Voltage Rating AC: 250 VAC Voltage Rating DC: 250 VDC Operating Force: 8.83 N Termination Style: Crimp Mounting Style: Chassis Mount IP Rating: IP65 Actuator Style: Roller Plunger Brand: Omron Automation and Safety Maximum Operating Temperature: + 65 C Minimum Operating Temperature: - 5 C Product Type: Limit Switches Series: HL-5000 Factory Pack Quantity: 1 Subcategory: Switches Type: Limit Part # Aliases: HL5200 Unit Weight: 150 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  • Models of width 17.5 mm available with 2 or 3 poles. Models of width 22.5 mm with 3 poles also available. • Conforms to EN standards. (TÜV approval) • DIN track mounting possible. Power Input   Model G9SB-200[]-[] G9SB-3010 G9SB-301[]-[] Power supply voltage 24 VAC/24 VDC 24 VDC 24 VAC/24 VDC Operating voltage range 85% to 110% of rated power supply voltage Power consumption 2.9 VA/1.4 W max. 1.7 W max. 3.6 VA/1.7 W max.   Inputs   Model G9SB-200[]-[] G9SB-3010 G9SB-301[]-[] Input current 25 mA max. 60 mA max. * 30 mA max.   * Indicates the current between terminals A1 and A2. Contacts   ModelLoad G9SB-200[]-[] G9SB-3010 G9SB-301[]-[] Resistive load Rated load 250 VAC, 5 A30 VDC, 5 A Rated carry current 5 A   Characteristics   Model G9SB-200[]-[] G9SB-3010 G9SB-301[]-[] Contact resistance *1 100 mΩ Operating time *2 30 ms max. Response time *3 10 ms max. Isolation voltage (Ui) 250 V/AC Impulse withstand voltage (Uimp) 4 kV Insulationresistance *4 Between inputsand outputs 100 MΩ min. (at 500 VDC) Between differentpoles of output Dielectricstrength Between inputs andoutputs 2,500 VAC 1 min. Between differentpoles of output Vibration resistance 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) Shockresistance Destruction 300 m/s2 Malfunction 100 m/s2 Durability *5 Mechanical 5,000,000 operations min. (at approx. 7,200 operations/hr) Electrical 100,000 operations min. (at approx. 1,800 operations/hr) Failure rate (P level) (reference value) 5 VDC, 1 mA Ambient operating temperature -25 to 55°C (with no icing or condensation) Ambient operating humidity 35% to 85% Pollution degree 2 Protection class IP20 Terminal tightening torque 0.5 N·m Weight Approx. 115 g Approx. 135 g Approx. 120 g   *1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.*2. Not including bounce time.*3. The response time is the time it takes for the main contact to open after the input is turned OFF. Includes bounce time.*4. The insulation resistance was measured with 500 VDC at the same places that the dielectric strength was checked.*5. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Operating indicator LED Degree of protection Closed type (cover) Terminal structure Plug-in terminal Coil Coil ratings 24 VDC 36.9 mA Coil resistance 650 Ω Operate voltage (Set voltage) 80 % max. Release voltage (Reset voltage) 10 % min. Maximum voltage 110 % Power consumption Approx. 0.9 W Contact Contact rated load 10 A (Resistive load)110 VAC 7.5 A (Inductive load (cosφ = 0.4))24 VDC 10 A (Resistive load)24 VDC 5 A (Inductive load (L/R = 7 ms)) Max. contact voltage 250 VAC125 VDC Max. contact current AC: 10 ADC: 10 A Contact form DPDT Contact method Single Contact material Ag alloy Performance Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A) Operating time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Reset time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) Maximum operating frequency Mechanical: 18000 time/hourRated load: 1800 time/hour Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)Between contacts of same polarity: 100 MΩ min. (at 500 VDC)Between contacts of different polarity: 100 MΩ min. (at 500 VDC) Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 minBetween contacts of same polarity: 1000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2000 VAC 50/60 Hz 1 min Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude) Shock resistance (destruction) 1000 m/s2 Shock resistance (Malfunction) 200 m/s2 Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h) Failure rate 100 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute) Ambient temperature (Operating) -25 to 40 ℃ (with no freezing or condensation) Ambient humidity (Operating) 5 to 85 % Weight Approx. 40 g Mounting method Socket Applicable socket PTF-08-PU/ PTF-08-PU-L/ PTF08A/ PTFZ-08-E/ PT08/ PT08QN/ PT08-0

Read more less

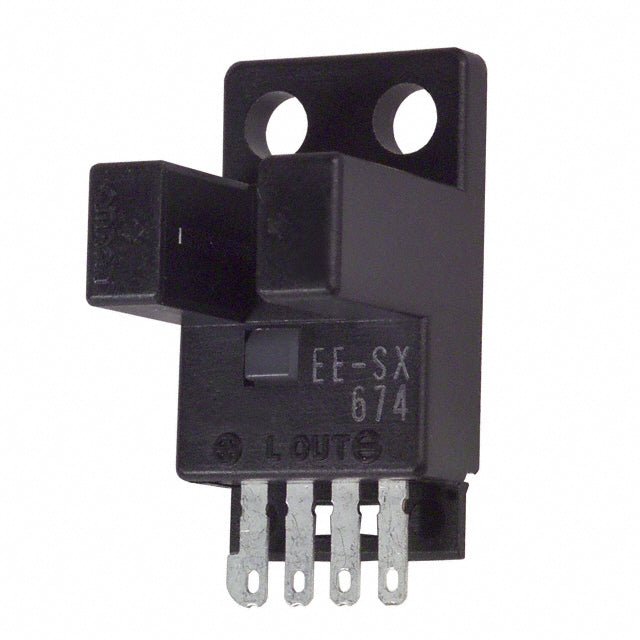

DELIVERY PERIOD : 1-2 WEEKS  Photomicrosensor, Slot type, Through-beam, Standard, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: No incident light, NPN output, Connector model Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type

Read more less

Size M12 Mounting type Quasi-flush Sensing distance 4 mm Output type PNP Operation mode NO Connection method Cable Material housing Brass, nickel plated Cable specifications PVC Cable length 2 m Overall length of sensor 47 mm Thread length 30 mm Degree of protection (IP) IP67

Read more less

DELIVERY PERIOD : 1-2 WEEKS  The Inductive Proximity Sensor LJ12A3-4-Z/DX by Ouee is a robust and reliable switch designed for close proximity detection of metal objects. With a detection distance of 4mm, this sensor is crafted from durable materials such as iron, nickel, and metal, ensuring longevity and consistent performance. Ideal for various industrial applications, it provides precise and quick responses in detecting metal presence. Features: Close proximity detection of 4mm Durable construction with iron, nickel, and metal High reliability and precision Quick response time Ideal for industrial applications Compatible with metal objects Package Includes: 1 x Inductive Proximity Sensor LJ12A3-4-Z/DX Close Proximity Switch (4mm)

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Item K3SC-10 100 to 240 VAC K3SC-10 24 VAC/VDC Supply voltage 100 to 240 VAC 50/60 Hz 24 VAC 50/60 Hz, 24 VDC Operating voltage range 85% to 110% of power supply voltage Power consumption 5 VA max. 3 VA max./3 W max. Master/slave device communications format(Select one of the formats listed on the rightusing the DIP switch.) Master Device ↔ Slave DeviceRS-232C or USB ↔ RS-485, half duplexRS-232C or USB ↔ RS-422, full duplexUSB ↔ RS-232C, full duplex Communications method Start-stop synchronization Ambient operating temperature RS-232C -10 to 55 °C (with no icing) USB 0 to 55 °C (with no icing) Ambient operating humidity 25% to 85% (with no condensation) Ambient storage temperature -20 to 65 °C   Characteristics   Item Specification Masterdevice RS-232Cinterface(Seenote 1.) Maximum transmis-sion distance 15 m Maximum number ofconnectable Units 1 Unit USBinterface(Seenote 2.) Maximum transmis-sion distance 5 m; hub delay time + cable delay time ≤ 70 ns Maximum number ofconnectable Units 1 Unit USB standard V1.1 Slavedevice RS-485interface Maximum transmis-sion distance 500 m Maximum number ofconnectable Units 31 Units (for multi-drop connection) RS-422interface Maximum transmis-sion distance 500 m Maximum number ofconnectable Units 1 Unit Baud rate 1,200/2,400/4,800/9,600/19,200/38,400 (bps)Default setting: 9,600 Data length 7/8 bitsDefault setting: 7 Stop bit length 1/2 bitsDefault setting: 2 Communications parity None/even/oddDefault setting: Even Echoback selection Echoback: With/withoutDefault setting: Without Selection switch response delay Approx. 30 ms Insulation resistance 20 MΩ min. measured at 500 VDC between the following:External terminals ↔ casingRS-232C terminals and USB port ↔ RS-422/485 terminals ↔ power supply terminals Isolationmethod Commu-nications Phototransistor coupler Powersupply Isolating transformer Dielectric strength 1,500 VAC for 1 minute measured between the following:External terminals ↔ casingRS-232C terminals, USB port, RS-422 terminals, and RS-485 terminals ↔ powersupply terminals 500 VAC for 1 minute measured between the following:RS-232C terminals and USB port ↔ RS-422 terminals and RS-485 terminals Noise immunity AC power supply terminals, normal/common mode: ±1,500 VAC/DC power supply terminals, normal mode: ±480 V; common mode: ±1,500 VSquare wave with 1-ns rising edge ±1 μs, ±100 ns Vibrationresistance Malfunction 10 to 55 Hz, 0.5-mm single amplitude for 10 minutes each in X, Y, and Z directions Destruction 10 to 55 Hz, 0.75-mm single amplitude for 2 hours each in X, Y, and Z directions Shock resistance Malfunction 98 m/s2 3 times each in X, Y, and Z directions Destruction 294 m/s2 3 times each in X, Y, and Z directions Weight Approx. 150 g Degree of protection(See note 3.) Front paneloperation parts Conforms to IEC standards, equivalent to IP20 (when terminal cover mounted) Terminals Equivalent to VDE 0106/100 (when terminal cover mounted) EMC (EMI) EN61326-1 Industrial electromagnetic environmentEmission Enclosure: CISPR 11 Group 1 class A: CISRP16-1/-2Emission AC Mains: CISPR 11 Group 1 class A: CISRP16-1/-2(EMS) EN61326-1 Industrial electromagnetic environmentImmunity ESD: EN61000-4-2: 4 kV contact discharge (level 2), 8 kV air discharge(level 3)Immunity RF-interference: EN61000-4-3: 10 V/m (amplitude-modulated, 80 MHz to1 GHz) (level 3)Immunity Fast Transient Noise: EN61000-4-4: 2 kV (power line) (level 3)Immunity Burst Noise: 1 kV line to line (I/O signal line)Immunity Surge: EN61000-4-5: 1 kV line to line, 2 kV line to ground (power line)Immunity Conducted Disturbance EN61000-4-6: 3 V (0.15 to 80 MHz) (level 2)Immunity Voltage Dip/Interrupting EN61000-4-11: 0.5 cycles, 0, 180°, 100% (ratedvoltage) Approved standards UL508, Conforms to EN61326-1, EN61010-1 (IEC61010-1) Memory protection No protective functions (Communications data is not protected for power interruptionsduring communications.)     Note: 1. With RS-232C communications, free-run mode is supported for SD and RD but not for any other signal lines.           2. To use USB communications, the USB driver for the K3SC must be downloaded from the OMRON web site.                  http://www.fa.omron.co.jp/           3. The enclosure ratings do not apply when USB is used.           4. The CE marking does not apply when the K3SC is used for USB.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Photomicrosensor, Slot type, Through-beam, Closemounting, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model Type Grooved Type (Close-mounting) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Control output (Output type) NPN open collector output Operation mode Dark-ON/Light-ON (selectable) Connection method Connector type
