Cable Length 10 m Usage/Application Industrial Conductor Material Copper Protection Type Shielded Brand Siemens Availability In Stock

Read more less

Data sheet Print Number of connector pins 40-pin Number of terminal 40 EA Terminal pitch 7.0mm Material CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass Weight Approx. 175g (approx. 133g) Rated voltage ≤125VDC , 125VAC~ 50/60Hz Rated current ≤1A Insulation resistance ≥ 1,000 MΩ (500 VDC megger) Dielectric strength 2,700 VAC~ 50/60 Hz for 1 minute Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

Read more less

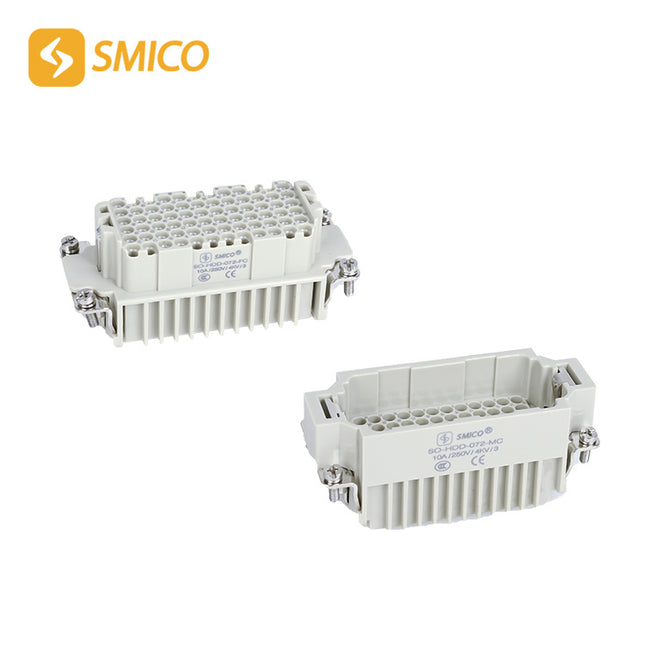

Product Name:   HDD-072-Mc/FC 72 Pins Heavy-Duty Power Connector Heavy-Duty Industrial Electrical Usage Plug Connector   Model NO.:   HDD-072-MC/FC   Type:   Heavy-Duty Connector   Usage:   Substation Fittings, Line Fittings   Standard:   GB   Technics:   Injection Molding   Rated Current:   10A   Rated Voltage:   250V   Rated Impulse Voltage:   4kv   Trademark:   SMICO   Transport Package:   Packaging   Specification:   46&52&87   Origin:   China   HS Code:   8536909000

Read more less

Male (M) HDD-072-MC T26 072 010 0017 Female (F) HDD-072-FC T26 072 020 0017 Tech Data Rated current: 10A Rated voltage: 250V Wiregauge: 0.14-2.5mm2 Hoods &  Housings For H16B series

Read more less

  Inserts Suitable Shell:16BHood/Housing Number of contacts 40 Electrical data acc. to EN 61 984 ---Rated current 10A ---Rated voltage conductor 250V ---Rated impulse voltage 4kV ---Pollution degree 3 ---Pollution degree 2 also 10A 230/400V 4kV 2 Rated voltage acc. to UL/CSA 600V Insulation resistance ≥1010Ω Material polycarbonate Limiting temperatures -40℃...+125℃ Flammability acc. to UL 94 V0 Mechanical working life(mating cycles) ≥500 Contacts Material copper alloy Surface hard-gold plated hard-silver plated Contact resistance ≤3mΩ Screw terminal ---Wrie gauge 0.14-2.5mm2 ---AWG 26-14 ---Tightening/Test torque

Read more less

Technical Data Series HDD insert series Connection type Crimp connection Male/female Female Specifications 6B Number of connector contacts 24 Grounding contacts Yes Rated current 10A Rated voltage 250V Rated pulse voltage 4KV Class of pollution 3 Parameters when class of pollution is 2 10A 230/400V 4kV 2 Rated voltage as per UL/CSA 600V Insulation resistance ≥10¹ºΩ Working temperature -40℃...+125℃ Mating cycles ≥500 Inserts material Polycarbonate Inserts color RAL 7032 (light gray) Flame retardant rating as per UL94 V0 Contact material Copper alloy Surface treatment Silver-plated Gold-plated Contact resistance ≤3mΩ Wire gauge (mm²) 0.14-2.5mm² Wire gauge (AWG) 26-14 AWG Stripping length 5mm 6mm 8mm Standard DIN EN 60 664 DIN EN 61984

Read more less

Brand Fafeicy Light Source Type LED Special Feature Waterproof Voltage 12 Volts Auto Part Position Right

Read more less

Specification Show similar products (12,108) Manufacturer HONGFA RELAY Type of relay electromagnetic Contacts configuration DPDT Rated coil voltage 24V DC Contact current max. 8A AC contacts rating @R(at resistive load) 8A / 250V AC DC contacts rating @R(at resistive load) 8A / 24V DC Manufacturer series HF115F Switched voltage max. 300V DC, max. 440V AC Relay variant miniature Mounting PCB Coil resistance 1.44kΩ Coil voltage min. 16.8V DC Coil voltage max. 36V DC Operate time 15ms Body dimensions 29x12.7x15.7mm Release time 8ms Coil power consumption 400mW Contact resistance 100mΩ Contact material AgNi Terminal pitch 5mm Operating temperature -40...85°C

Read more less

specifications description Terminal Capacity Min 1x0.5mm, Max 2x1.5mm or 1x2.5 mm Product Sub Type Flush Ambient Humidity -25°C to 70°C Short Circuit Protection 10 A cartridge fuse HRC type Operating Positions All Positions Features All actuators are supplied with fixing flange Color Red Type of Product Momentary Actuators Model No P2AF4 Protection IP65 Material Plastic Country of Origin India Name of Manufacturer/Packer/Importer TEKNIC.LTD

Read more less

Product Specifications Current Rating 6A Contact operation Slow-break Number of Poles 1 Brand Schneider Model Name/Number ZBE101 Availability In Stock This Harmony ZB, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 or XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Read more less

Outside diameter4 mm Flow-relevant bending radius18 mm Inside diameter2.9 mm Min. bending radius12 mm Tubing characteristicsSuitable for energy chains Temperature-dependent operating pressure-0.095 MPa ... 1.5 MPa Temperature-dependent operating pressure-0.95 bar ... 15 bar Temperature-dependent operating pressure-13.775 psi ... 217.5 psi ApprovalGerman Technical Control Board (TÜV) Maritime classificationSee certificate Certificate issuing authorityB 013277 0527 00 Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformityVDMA24364-B2-L Ambient temperature-30 °C ... 80 °C Product weight according to length0.006 kg/m Pneumatic connectionFor push-in connector O.D. 4 mm For barbed fitting I.D. 3 mm with union nut For barbed fitting I.D. 3 mm ColourNatural Shore hardnessD 55 +/-3 Note on materialsRoHS-compliant Material tubingTPE-A Frequently bought together with PAN-4X0

Read more less

Number of Contacts 24 Material Plastic, Metal Shape Rectangular Usage In Electric Connection I Deal In New Only Country of Origin Made in India Brand Sibass Pin Count 24 Model No HDD-024 Color Grey Availability In Stock
