DELIVERY PERIOD : 1-2 WEEKS  Power rating 30 W Output voltage 12 VDC Rated input voltage 100 to 240 VAC Construction Covered type Connection Terminal blocks Terminal type Screw terminal

Read more less

DELIVERY PERIOD : 1-2 WEEKS • New CP1E CPU Units now available. - Lineup including CPU Units with built-in three ports: USB, RS-232C, RS-485. - The depth of CPU Units with RS-232C connectors is reduced by 20 mm. (N30/40/60S(1)) • Easy connection with computers using commercially available USB cables. • With E30/40/60(S), N30/40/60(S[]) or NA20 CPU Units, Add I/O, Analog I/O or Temperature Inputs by Connecting Expansion Units or Expansion I/O Units. • Input interrupts • Complete High-speed Counter Functionality. • Versatile pulse control for Transistor Output for N14/20/30/40/60(S[]) or NA20 CPU Units. • PWM Outputs for Transistor Output for N14/20/30/40/60(S[]) or NA20 CPU Units. • Mounting Serial Option Boards, Ethernet Option Board and Analog Option Board to N30/40/60 or NA20 CPU Units. • Built-in analog I/O, two inputs and one output, for NA-type CPU Units. General Specifications   Type AC power supply models DC power supply models Model CP1E-[][][]S[]D[]-ACP1E-[][][]D[]-A CP1E-[][][]S[]D[]-DCP1E-[][][]D[]-D Enclosure Mounted in a panel Dimensions (H × D × W) E/N/NA[][]-typeCPU Unit with 10 I/O points (CP1E-E10D[]-[]): 90mm *1 × 85mm *2 × 66 mmCPU Unit with 14 or 20 I/O points (CP1E-[]14D[]-[]/[]20D[]-[]): 90mm *1 × 85mm *2× 86 mmCPU Unit with 30 I/O points (CP1E-[]30D[]-[]): 90mm *1 × 85mm *2 × 130 mmCPU Unit with 40 I/O points (CP1E-[]40D[]-[]): 90mm *1 × 85mm *2 × 150 mmCPU Unit with 60 I/O points (CP1E-N60D[]-[]): 90mm *1 × 85mm *2 × 195 mmCPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 90mm *1 × 85mm*2 × 130 mmE/N/[][]S(1)-typeCPU Unit with 14 or 20 I/O points (CP1E-[]14SD[]-[]/[]20SD[]-[]): 90mm *1 × 79mm*2 × 86 mmCPU Unit with 30 I/O points (CP1E-[]30S(1)D[]-[]): 90mm *1 × 79mm *2 × 130 mmCPU Unit with 40 I/O points (CP1E-[]40S(1)D[]-[]): 90mm *1 × 79mm *2 × 150 mmCPU Unit with 60 I/O points (CP1E-[]60S(1)D[]-[]): 90mm *1 × 79mm *2 × 195 mm Weight CPU Unit with 10 I/O points (CP1E-E10D[]-[]): 300g max.CPU Unit with 14 I/O points (CP1E-[]14(S)D[]-[]): 360g max.CPU Unit with 20 I/O points (CP1E-[]20(S)D[]-[]): 370g max.CPU Unit with 30 I/O points (CP1E-[]30(S[])D[]-[]): 600g max.CPU Unit with 40 I/O points (CP1E-[]40(S[])D[]-[]): 660g max.CPU Unit with 60 I/O points (CP1E-[]60(S[])D[]-[]): 850g max.CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D[]-[]): 680g max. Elec-tricalspec-ifica-tions Supply voltage 100 to 240 VAC 50/60 Hz 24 VDC Operating voltagerange 85 to 264 VAC 20.4 to 26.4 VDC Powerconsumption 15 VA/100 VAC max.25 VA/240 VAC max.(CP1E-E10D[]-A/[]14(S)D[]-A/[]20(S)D[]-A) 9 W max. (CP1E-E10D[]-D)13 W max. (CP1E-N14D[]-D/N20D[]-D) 50 VA/100 VAC max.70 VA/240 VAC max.(CP1E-NA20D[]-A/[]30(S[])D[]-A/[]40(S[])D[]-A/N60(S[])D[]-A) 20 W max.(CP1E-NA20D[]-D/N30(S[])D[]-D/N40(S[])D[]-D/N60(S[])D[]-D) *4 Inrush current 120 VAC, 20 A for 8 ms max. for cold startat room temperature240 VAC, 40 A for 8 ms max. for cold startat room temperature 24 VDC, 30 A for 20 ms max. for cold startat room temperature External powersupply *3 Not provided.(CP1E-E10D[]-A/[]14(S)D[]-A/[]20(S)D[]-A)24 VDC, 300 mA(CP1E-NA20D[]-A/[]30D[]-A/[]40D[]-A/[]60D[]-A/[]30SDR-A/[]40SDR-A/[]60SDR-A) Not provided Insulationresistance 20 MΩ min. (at 500 VDC) between theexternal AC terminals and GR terminals Except between DC primary current and DCsecondary current Dielectricstrength 2,300 VAC 50/60Hz for 1 min between ACexternal and GR terminals Leakage current:5 mA max. Except between DC primary current and DCsecondary current Power OFFdetection time 10 ms min. 2 ms min. Appli-cationenvi-ron-ment Ambient operatingtemperature 0 to 55 °C Ambient humidity 10% to 90% Atmosphere No corrosive gas. Ambient storagetemperature -20 to 75 °C (excluding battery) Altitude 2,000 m max. Pollution degree 2 or less: Meets IEC 61010-2-201. Noise resistance 2 kV on power supply line (Conforms to IEC61000-4-4.) Overvoltagecategory Category II: Meets IEC 61010-2-201. EMC ImmunityLevel Zone B Vibrationresistance Conforms to JIS 60068-2-6.5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 HzAcceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each= 100 min total) Shock resistance Conforms to JIS 60068-2-27.147 m/s2, 3 times in X, Y, and Z directions Terminal block Fixed (not removable) Terminal screw size M3 Applicable standards Conforms to EC Directive Grounding method Ground to 100 Ω or less.     * 1 Total of 110 mm with mounting brackets.* 2 Excluding cables.* 3 Use the external power supply to power input devices. Do not use it to drive output devices.* 4 This is the rated value for the maximum system configuration. Use the following formula to calculate power        consumption for CPU Units with DC power.        Formula: DC power consumption = (5 V current consumption × 5 V/70% (internal power efficiency) + 24V current        consumption) × 1.1 (current fluctuation factor)        The above calculation results show that a DC power supply with a greater capacity is required.   Performance Specifications   Item CP1E-E[][]SD[]-[]CP1E-[][]D[]-[] CP1E-N[][]S[]D[]-[]CP1E-N[][]D[]-[]CP1E-NA[][]D[]-[] Program capacity 2 K steps (8 Kbytes) includingthe symbol table, comments,and program indices of theCX-Programmer 8 K steps (32 Kbytes) including the symboltable, comments, and program indices ofthe CX-Programmer Control method Stored program method I/O control method Cyclic scan with immediate refreshing Program language Ladder diagram Instructions Approximately 200 Proc-essingspeed Overhead processing time 0.4 ms Instruction execution times Basic instructions (LD): 1.19 μs min.Special instructions (MOV): 7.9 μs min. Number of CP1W-series ExpansionUnits connected CP1E-E10D[]-[]/[]14(S)D[]-[]/[]20(S)D[]-[]: NoneCP1E-[]30(S[])D[]-[]/[]40(S[])D[]-[]/[]60(S[])D[]-[]/NA20(S[])D[]-[]: 3 units Maximum number of I/O points CP1E-E10D[]-[]: 10CP1E-[]14(S)D[]-[]: 14CP1E-[]20(S)D[]-[]: 20CP1E-[]30(S[])D[]-[]: 150 (30 built in, 40 × 3 expansion)CP1E-[]40(S[])D[]-[]: 160 (40 built in, 40 × 3 expansion)CP1E-[]60(S[])D[]-[]: 180 (60 built in, 40 × 3 expansion)CP1E-NA20D[]-[]: 140 (20 built in, 40 × 3 expansion) Built-in I/O CP1E-E10D[]-[]: 10 (6 inputs, 4 outputs)CP1E-[]14(S)D[]-[]: 14 (8 inputs, 6 outputs)CP1E-[]20(S)D[]-[]: 20 (12 inputs, 8 outputs)CP1E-[]30(S[])D[]-[]: 30 (18 inputs, 12 outputs)CP1E-[]40(S[])D[]-[]: 40 (24 inputs, 16 outputs)CP1E-[]60(S[])D[]-[]: 60 (36 inputs, 24 outputs)CP1E-NA20D[]-[]: 20 (12 inputs, 8 outputs) Built-ininputfunc-tions High-speedcounters High-speedcounter mode/maximumfrequency Incremental Pulse Inputs10 kHz:6 counters5 counters (only for 10 I/Opoints)Up/Down Inputs10 kHz: 2 countersPulse + Direction Inputs10 kHz: 2 countersDifferential Phase Inputs (4x)5 kHz: 2 counters Incremental Pulse Inputs100 kHz: 2 counters, 10 kHz: 4 countersUp/Down Inputs100 kHz: 1 counters, 10 kHz: 1 countersPulse + Direction Inputs100 kHz: 2 countersDifferential Phase Inputs (4x)50 kHz: 1 counter, 5 kHz: 1 counter Counting mode Linear modeRing mode Count value 32 bits Counter resetmodes Phase Z and software reset (excluding increment pulse input)Software reset Control method Target MatchingRange Comparison Input interrupts 6 inputs (4 inputs only for 10 I/O points)Interrupt input pulse width: 50 μs min. Quick-response Inputs 6 inputs (4 inputs only for 10 I/O points)Input pulse width: 50 μs min. Normalinput Input constants Delays can be set in the PLC Setup (0 to 32 ms, default: 8 ms).Set values: 0, 1, 2, 4, 8, 16, or 32 ms Built-inoutputfunc-tions Pulseoutputs(Modelswithtransistoroutputsonly) Pulse outputmethod andoutput frequency Pulse output function notincluded Pulse + Direction Mode1 Hz to 100 kHz: 2 outputs Output mode Continuous mode (for speed control)Independent mode (for position control) Number ofoutput pulses elative coordinates: 0000 0000 to 7FFFFFFF hex (0 to 2147483647)Absolute coordinates: 8000 0000 to 7FFFFFFF hex (-2147483647 to 2147483647) Acceleration/decelerationcurves Trapezoidal acceleration and deceleration(Cannot perform S-curve acceleration anddeceleration.) Changing SVsduringinstructionexecution Only target position can be changed. Origin searches Included Pulseoutputs(Modelswithtransistoroutputsonly) Frequency PWM output function notincluded 2.0 to 6,553.5 Hz (in increments of 0.1 Hz)with 1 output or 2 Hz to 32,000 Hz (inincrements of 1 Hz) with 1 output Duty factor 0.0% to 100.0% (in increments of 0.1%)Accuracy: +1%/-0% at 2 Hz to 10,000 Hzand +5%/-0% at 10,000 Hz to 32,000 kHz Output mode Continuous Mode Built-in analog Analog input Analog function not included Setting range: 0 to 6,000 (2 channels onlyfor NA-type) Analog output Setting range: 0 to 6,000 (1 channels onlyfor NA-type) Analog adjusters E/N/NA[][]-type: 2 adjusters (Setting range: 0 to 255)E/N[][]S(1)-type: None Com-muni-cations B-type Peripheral USB Port Conforming to USB 2.0 B type connector Transmissiondistance 5 m max. Built-in RS-232C port No built-in RS-232C port Interface: Conforms to EIA RS-232C. Communicationsmethod Half duplex synchronization Start-stop Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2kbps Transmissiondistance 15 m max. Supportedprotocol • Host Link• 1:N NT Link• No-protocol mode• Serial PLC Links (master, slave)• Modbus-RTU Easy Master Built-in RS-485 port No built-in RS-485 port N30/40/60S1-type onlyInterface: Conforms to EIA RS-485. 2-wiresensorsNo isolation Communicationsmethod Half duplex synchronization Start-stop Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2kbps Transmissiondistance 50 m max. Supportedprotocol • Host Link• 1:N NT Link• No-protocol mode• Serial PLC Links (master, slave)• Modbus-RTU Easy Master Serial Option port Option Board cannot bemounted. N30/40/60 and NA20-type only1 port MountableOption Boards One RS-232C port: CP1W-CIF01One RS-422A/485 port (not isolated):CP1W-CIF11One RS-422A/485 port (isolated):CP1W-CIF12-V1One Ethernet port: CP1W-CIF41 Communicationsmethod Depends on Option Board. synchronization Depends on Option Board. Baud rate 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2kbps Compatibleprotocols • Host Link• 1:N NT Link• No-protocol mode• Serial PLC Links (master, slave)• Modbus-RTU Easy Master Number of tasks 17• One cyclic execution task• One scheduled interrupt task (always interrupt task 1)• Six input interrupt tasks (interrupt tasks 2 to 7)• Sixteen high-speed counter interrupt tasks (interrupt tasks 1 to 16) Maximum subroutine number 128 Maximum jump number 128 Scheduled interrupt tasks 1 interrupt task Clock Clock function not included.The time of error occurrencedisplays 01-01-01 01:01:01Sunday Included.Accuracy (monthly deviation):-4.5 min to -0.5 min at ambienttemperature of 55°C,-2.0 min to +2.0 min at ambienttemperature of 25°C,-2.5 min to +1.5 min at ambienttemperature of 0°C Memorybackup Built-in EEPROM Ladder programs and parameters are automatically saved to built-in EEPROMA section of the Data Memory Area can be saved to the built-in EEPROM. Battery backup WithCP1W-BAT01 Battery(Sold separately) Battery cannot be mounted. CP1W-BAT01 can be used.Maximum battery service life: 5 yearsBackup TimeGuaranteed value (ambient temperature:55°C): 13,000 hours (approx. 1.5 years)Effective value (ambient temperature:25°C): 43,000 hours (approx. 5 years) CIOArea Input Bits 1,600 bits (100 words): CIO 0.00 to CIO 99.15 (CIO 00 to CIO 99) Output Bits 1,600 bits (100 words): CIO 100.00 to CIO 199.15 (CIO 100 to CIO 199) Serial PLC Link Words 1,440 bits (90 words): CIO 200.00 to CIO 289.15 (words CIO 200 to CIO 289) Work Area (W) 1,600 bits (100 words): W0.00 to W99.15 (W0 to W99) Holding Area (H) 800 bits (50 words): H0.00 to H49.15 (H0 to H49)Bits in this area maintain their ON/OFF status when operating mode ischanged. Auxiliary Area (A) Read-only: 7,168 bits (448 words) A0 to A447Read/write: 4,896 bits (306 words) in words A448 to A753 Temporary Relay Area (TR) (TR Area) 16 bits: TR0 to TR15 Timer Area (T) 256 timer numbers (T0 to T255 (separate from counters)) Counter Area (C) 256 counter numbers (C0 to C255 (separate from timers)) Data Memory Area (D) 2 Kwords: D0 to D2047Of these, 1,500 words can besaved to the backup memory(built-in EEPROM) usingsettings in the Auxiliary Area. 8 Kwords: D0 to D8191Of these, 7,000 words can be saved to thebackup memory (built-in EEP-ROM) usingsettings in the Auxiliary Area Operating modes PROGRAM mode:Program execution is stopped.Preparations can be executed prior to program execution in this mode.MONITOR mode:Programs are executed.Some operations, such as online editing, and changes to present values inI/O memory, are enabled in this mode.RUN mode:Programs are executed.This is the normal operating mode.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Type Description Select All Category Industrial Automation and Controls Industrial sensors Photoelectric Industrial Manufacturer Omron Automation and Safety Series E3T Packaging Bulk Part Status Active Sensing Method Through-Beam Sensing Distance 19.685" (500mm) Voltage - Supply 12V ~ 24V Response Time 1ms Output Configuration NPN - Open Collector/Dark-ON Light Source Red (650nm) Connection Method Cable Ingress Protection IP67, IEC Adjustment Type - Operating Temperature -25°C ~ 55°C

Read more less

DELIERY PERIOD : 1-2 WEEKS  Manufacturer: Omron Product Category: Limit Switches RoHS:  Details REACH - SVHC: Details Illuminated: Non-Illuminated Brand: Omron Automation and Safety Product Type: Limit Switches Series: D4NL Factory Pack Quantity: 1 Subcategory: Switches Part # Aliases: D4NL4CFAB Unit Weight: 492.398 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Type Process Input type DC current Input range -199.99 to 199.99 mA Size 1/8 DIN (96 x 48 mm) Number of digits 5 Output type None Supply voltage AC 100-240 V Accuracy +/- 0.1% full scale Sample rate 20 ms Communication port(s) None Features Colour change display Product Width (unpacked) 96 mm Product Height (unpacked) 48 mm Product Depth (unpacked) 95 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS [Features]•Magnetic proximity sensor that is easy to handle.•Proximity sensor to operate reed switch with permanent magnet.•Ideal for detection of opening and closing of door etc.•We can sell set products (Sensor & Magnet) and individual part (Sensor, Magnet)•Wiring: Terminal Block Model, Pre-wired Model•Sensing Distance: 15mm•Contact Circuit: SPST-NO (Normally Open)•Operating Temperature range: -20 to +60 ℃•Operating Humidity: 25% to 85%•Degree of protection: IP40(Terminal Block Model), IP64(Pre-wired Model)•Material: ABS•Cable Length: 1m (Pre-Wired Model) Dimensional Drawing of OMRON Proximity Sensors OMRON Proximity Sensors (Terminal Block Type) OMRON Proximity Sensors (With Pull-Out Cord) OMRON Proximity Sensors Magnet Part Specification Table of OMRON Proximity Sensors Proximity Sensors kinds Terminal block type Proximity Sensors (Proximity Sensors) Pull-out cord type Proximity Sensors (Proximity Sensors) Proximity Sensors Model number kinds Model GLS-1 Set format Model GLS-S1 Proximity Sensors Model GLS-M1 Magnet Part Proximity Sensors Model number kinds Cord length Model GLS-1L Set format 1m Model GLS-S1-L Proximity Sensors Note: For pre-wired types, the magnet unit cannot be ordered separately.    The magnet unit specifications differ between pre-wired and terminal block types. OMRON Proximity Sensors Ratings/Performance Proximity Sensors item Proximity Sensors format Model GLS-1 Model GLS-1L Detection distance 15mm *1 Contact Circuit 1a Contact capacity*2 Maximum voltage: DC100VMaximum current: DC0.1AMaximum contact capacity: 10W (including opening and closing) Contact Withstand Voltage DC250V 1min Leakage current 1mA or less Response Frequency 20Hz or less Ambient Temperature Range During operation and storage: -20 to +60°C (but do not freeze or condense) Ambient Humidity Range During operation and storage: 35 to 85% RH (but no condensation) Contact Resistance 150mΩ or less 250mΩ or less (including lead wire conductor resistance) Withstand voltage AC1,000V 1min between each terminal and case lifespan Over 50 million times (DC24V 0.1A resistive load) Vibration (durability) 10 to 55Hz, double amplitude 1.5mm, 2h each in X, Y, and Z directions Impact (durability) 300m/s2 3 times each in X, Y, and Z directions Protective structure IEC standard IP40 Connection method Terminal Block Type Cord pull-out type (standard cord length 1m) Proximity Sensors Material Proximity Sensors ABS Proximity Sensors Magnet Part *1.Please note that the actual detection distance is 15mm or more.*2.The Proximity Sensors Cannot be used with AC.

Read more less

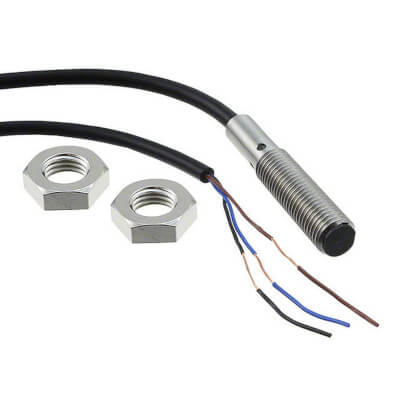

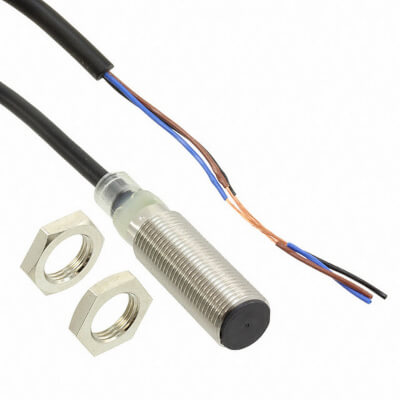

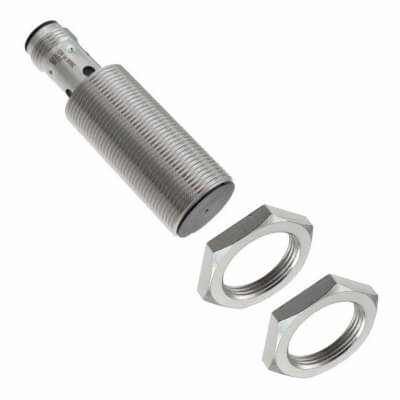

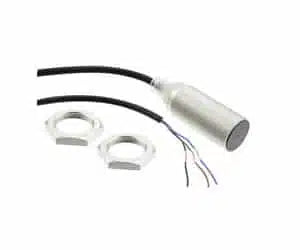

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Proximity Sensors RoHS: N Sensing Method: Inductive Sensing Distance: 2 mm Mounting Style: Cable Output Configuration: PNP Barrel Size: M8 Brand: Omron Automation and Safety Description/Function: NO Maximum Frequency: 1.5 kHz Maximum Operating Temperature: + 70 C Minimum Operating Temperature: - 25 C Operating Supply Current: 200 mA Operating Supply Voltage: 30 V Series: E2B Factory Pack Quantity: 1 Subcategory: Sensors Part # Aliases: E2BS08KS02WPB12M Unit Weight: 65 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer Omron Product Category Optical Switches Transmissive Phototransistor output Sensing Distance 5 mm Sensing Method Transmissive, Slotted, Through-Beam Type Slot Width 5 mm Aperture Width 0.8 mm Maximum Collector Current 100 mA Mounting Style Panel Mount Minimum Operating Temperature - 25 C Maximum Operating Temperature + 55 C Series EE-SX67 Packaging Each Height 15.5 mm Length 13 mm Number of Channels 1 Channel Output Type Phototransistor Product Type Optical Switches, Transmissive, Phototransistor Output Subcategory Optical Switches Termination Style PCB Wavelength 940 nm Width 27.7 mm Part # Aliases 1385697 EESX674A

Read more less

DELIVERY PERIOD : 1-2 WEEKS Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 15 m, PNP open collector, Pre-wired model, 2 m Sensing method Through-beam type Sensing distance 15 m Light source Infrared LED (870 nm) Connection method Pre-wired models

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Photoelectric Sensors RoHS:  Details REACH - SVHC: Details Brand: Omron Automation and Safety Product Type: Photoelectric Sensors Series: E3Z Factory Pack Quantity: 1 Subcategory: Sensors Part # Aliases: E3ZT61D2M Unit Weight: 120 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS Manufacturer: Omron Product Category: Relay Sockets & Fixings RoHS:  Details Product: Relay Sockets Associated Relay Series: G2R-1-S (S) Termination Style: Screw Brand: Omron Automation and Safety Mounting Style: PCB Mount Product Type: Relay Sockets & Hardware Series: G2R Factory Pack Quantity: 1 Subcategory: Relays Part # Aliases: P2RFZ08E

Read more less

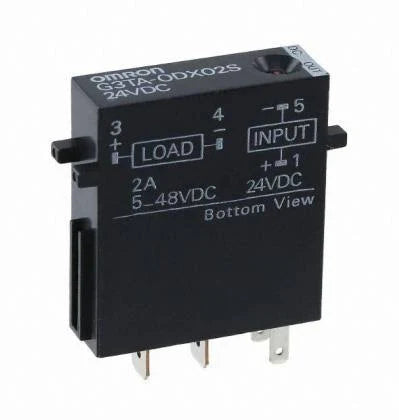

• Reduces wiring work by 60% when combined with the P2RF-05-PU Push-In Plus Socket (according to actual OMRON measurements). • These I/O solid state relays can be mounted in OMRON G70A I/O Terminals. • Lineup includes Input Modules for microloads and Output Modules for standard loads. • Certified by UL, CSA, and EN (TÜV certification) (-UTU models) Input Side   Model Rated voltage Operatingvoltage Input current Must-operatevoltage Must-releasevoltage G3R-IAZR1SN-UTU 100 to 240 VAC 60 to 264 VAC 15 mA max. 60 VAC max. 20 VAC min. G3R-IDZR1SN-UTU 5 VDC 4 to 6 VDC 8 mA max. 4 VDC max. 1 VDC min. G3R-IDZR1SN-UTU 12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min. G3R-IDZR1SN-1-UTU 5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min. G3R-IDZR1SN-1-UTU 12 to 24 VDC 6.6 to 32 VDC 6.6 VDC max. 3.6 VDC min.   Output Side   Model Load voltage Load current G3R-IAZR1SN-UTU 4 to 32 VDC 0.1 to 100 mA G3R-IDZR1SN-UTU G3R-IDZR1SN-UTU G3R-IDZR1SN-1-UTU G3R-IDZR1SN-1-UTU   Output Modules for Standard Loads Input Side   Model Rated voltage Operatingvoltage Inputcurrent Must-operatevoltage Must-releasevoltage G3R-OA202SZN-UTU 5 to 24 VDC 4 to 32 VDC 15 mA max.(at 25°C) 4 VDC max. 1 VDC min. G3R-OA202SLN-UTU G3R-ODX02SN-UTU 8mA max. G3R-OD201SN-UTU   Output Side   Model Load voltage Load current *1 Surge withstand current G3R-OA202SZN-UTU 75 to 264 VAC 0.05 to 2 A *2 30 A (60 Hz, 1 cycle) G3R-OA202SLN-UTU G3R-ODX02SN-UTU 4 to 60 VDC 0.01 to 2 A *2 8 A (10 ms) G3R-OD201SN-UTU 40 to 200 VDC 0.01 to 1.5 A *2 8 A (10 ms)     *1. Depends on the ambient temperature. Refer to the reference data Load Current vs. Ambient Temperature Rating on       Data Sheet for details.*2. The minimum current value is for a temperature of 10°C or higher.   I/O External Display Lineup includes Input Modules and Output Modules.The I/O Module classification and AC/DC classification are also indicated in the markings on top of the Relay.   Marking Specifications AC IN Input Modules for Microloads, AC input DC IN Input Modules for Microloads, DC input AC OUT Output Modules for Standard Loads, AC output DC OUT Output Modules for Standard Loads, DC output   Characteristics Input Modules for Microloads   Model G3R-IAZR1SN-UTU G3R-IDZR1SN-UTU G3R-IDZR1SN-1-UTU Operation time 20 ms max. 0.1 ms max. 15 ms max. Release time Response frequency 10 Hz 1 kHz 10 Hz Output ON voltage drop 1.6 V max. Leakage current 5 μA max. Insulation resistance 100 MΩ min. between I/O Dielectric strength 4,000 VAC for 1 min. between I/O Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shock resistance 1,000 m/s2 Storage temperature -30 to 100°C (with no icing) Ambient operating temperature -30 to 80°C (with no icing) Ambient operating humidity 45% to 85% Weight Approx. 18 g MTTFd (Reference value) 1,000 years min.   Output Modules for Standard Loads   Model G3R-OA202SZN-UTU G3R-OA202SLN-UTU G3R-ODX02SN-UTU G3R-OD201SN-UTU Operation time 1/2 load power supplycycle + 1 ms max. 1 ms max. Release time 1/2 load power supply cycle + 1 ms max. 2 ms max. Response frequency 20 Hz 100 Hz Output ON voltage drop 1.6 V max. 2.5 V max. Leakage current 1.5 mA max. 1 mA max. Insulation resistance 100 MΩ min. between I/O Dielectric strength 4,000 VAC for 1 min. between I/O Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shock resistance 1,000 m/s2 Storage temperature -30 to 100°C (with no icing) Ambient operatingtemperature -30 to 80°C (with no icing) Ambient operatinghumidity 45% to 85% Weight Approx. 18 g MTTFd (Reference value) 1,000 years min.   Accessories (Order Separately) Socket Characteristics   Model Ratedcarrycurrent Dielectric strength nsulationresistance * Remarks P2RF-05-PU 10 A Between contact terminals of same polarity: 1,000 VAC for1 min 1,000 MΩ min. Between coil and contact terminals: 4,000 VAC for 1 min P2RFZ-05(-E) 10 A Between contact terminals of same polarity: 1,000 VAC for1 min 1,000 MΩ min. Between coil and contact terminals: 4,000 VAC for 1 min P2R-05P 10 A Between contact terminals of same polarity: 1,000 VAC for1 min 1,000 MΩ min. Between coil and contact terminals: 4,000 VAC for 1 min P2R-057P 10 A Between contact terminals of same polarity: 1,000 VAC for1 min 1,000 MΩ min. Between coil and contact terminals: 5,000 VAC for 1 min P2R-05A 10 A Between contact terminals of same polarity: 1,000 VAC for1 min 1,000 MΩ min. Between ground terminals: 1,500 VAC for 1 min Between coil and contact terminals: 4,000 VAC for 1 min
