DELIVERY PERIOD : 1-2 WEEKS  I/O system CJ I/O Bus Expansion unit type Basic I/O Unit Type of module Digital I/O Number of digital inputs 16 Digital input type PNP/NPN Permitted voltage at input 20.4-26.4 V OFF/ON delay 0-32 ms Number of digital outputs 0 Digital output type None Output current 0 A Short-circuit protected outputs I/O connection type Screw Number of I/O connectors 1 Detachable I/O connector Suitable for safety functions Number of IOV (V+) terminals 0 Number of IOG (V-) terminals 0 Number of COM terminals 2 Product Height (unpacked) 90 mm Product Width (unpacked) 31 mm Product Depth (unpacked) 89 mm Product Weight (unpacked) 60 g

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Product Attribute Attribute Value Manufacturer Part Number R88M-1M75030T-S2 Brand Omron Automation Nominal Voltage 230 V ProductVideoURL https://www.youtube.com/embed/KT2Rp9DkYi8?rel=0&controls=0 Torque 2.39 N/m Speed 3000 RPM Alternate Mfr Part Number R88M1M75030TS2 Type Servo Motor Capacity 750 lb Series S1 SERIES Overview Simplified Machine Design and MaintenanceOmron's 1S Series servos incorporate valuable input from customers to optimize use from design to commissioning. Important functions for motion control that used to be external parts have been eliminated to help machine building OEMs reduce labor and hardware costs, and deliver projects on time and within budget. The 1S servos represent a significant addition to the Sysmac automation solution, utilizing Sysmac Studio, the one software package used for motion and sequential control, safety, vision, robotics, and networking.Features● Power Range from 100 W to 3 kW - 100/200/400 V● 23 Bit High Resolution Encoder● 350% Momentary Maximum Torque● Battery-Free Absolute Multi-Turm Encoder● Improved Loop Control for Low Overshoot and Quick Setting Time

Read more less

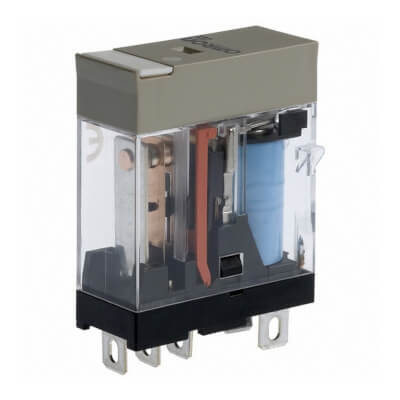

DELIVERY PERIOD : 1-2 WEEKS  Coil ratings 24 VDC 21.6 mA Contact form SPDT Contact method Single Contact material Ag alloy Contact rated load 250 VAC 10 A (Resistive load)250 VAC 7.5 A (Inductive load (cosφ = 0.4))30 VDC 10 A (Resistive load)30 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Bi-power Relay, 2-pole, Single contact, With operation indicator, Plug-in Terminals, 24 VDC Coil ratings 24 VDC 36.9 mA Operating indicator LED Contact form DPDT Contact method Single Contact material Ag alloy Contact rated load 10 A (Resistive load)110 VAC 7.5 A (Inductive load (cosφ = 0.4))24 VDC 10 A (Resistive load)24 VDC 5 A (Inductive load (L/R = 7 ms)) Terminal structure Plug-in terminal

Read more less

Product Attribute Attribute Value Select Attribute Manufacturer: Omron Product Category: Limit Switches Delivery Restrictions:  Mouser does not sell this product in your region. RoHS:  Details Illuminated: Non-Illuminated Brand: Omron Automation and Safety Product Type: Limit Switches Series: WL Factory Pack Quantity: 1 Subcategory: Switches Part # Aliases: WLD3LD Unit Weight: 275 g

Read more less

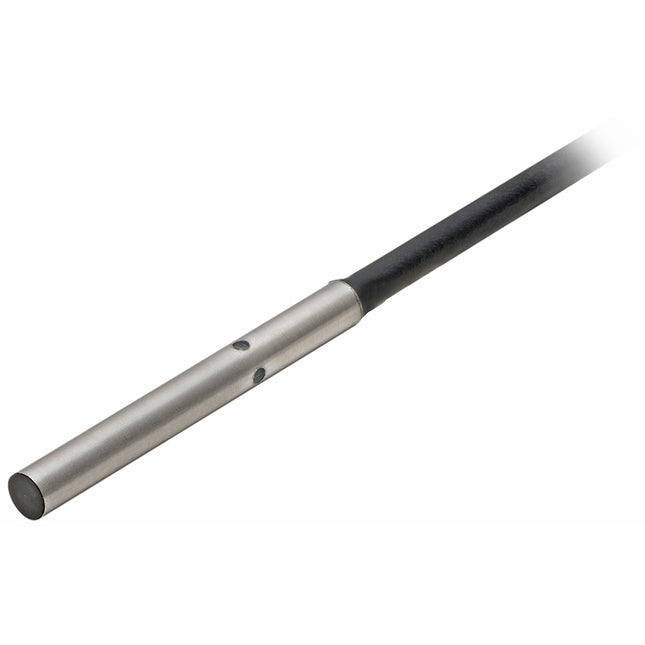

DELIVERY PERIOD : 1-2 WEEKS  Manufacturer OMRON  Type of sensor Inductive Output configuration NPN/NO Range 0...2mm Switch housing M8 Connection cables Lead length 2m IP rating IP67 Max. operating current 200mA Operating temperature -25...70°C Kind of forehead embedded Body material stainless steel Switching frequency max 1.5kHz Overall length 64mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Type Description Select All Category Relays , Signal Relays , up to 2Amps  Manufacturer Omron Electronics Inc-EMC Div Series G6A Packaging Tube Part Status Active Mounting Type Through Hole Coil Voltage 24VDC Contact Form DPDT (2 Form C) Contact Rating (Current) 2 A Switching Voltage 250VAC, 220VDC - Max Load - Max Switching 500VA, 440W Coil Current 8.3 mA Coil Type Non Latching Features - Termination Style PC Pin Seal Rating - Coil Insulation - Must Operate Voltage 16.8 VDC Must Release Voltage 2.4 VDC Operate Time 5 ms Release Time 3 ms Operating Temperature -40°C ~ 70°C Contact Material Silver (Ag), Gold (Au) Approval Agency - Relay Type General Purpose Grade - Qualification - Coil Resistance 2.88 kOhms Base Product Number G6A-274 Report Product Information Error View Similar

Read more less

DELIVERY PERIOD : 1-2 WEEKS  • Additional Push-In Plus terminal sockets are used to save wiring work in comparison with traditional screw terminals.(Wiring time is reduced by 60%* in comparison with traditional screw terminals.) • Relays with forcibly guided contacts (EN 61810-3, Certified by VDE). • Supports the CE marking of machinery (Machinery Directive). • Helps avoid hazardous machine status when used as part of an interlocking circuit. • Four-pole and six-pole Relays are available. • The Relay’s terminal arrangement simplifies PWB pattern design. • Reinforced insulation between inputs and outputs. Reinforced insulation between some poles of different polarity. * According to OMRON actual measurement data Coil (4 poles)   Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW) Rated voltage 12 VDC 30 400 110% Approx. 360 18 VDC 20 900 21 VDC 17.1 1,225 24 VDC 15 1,600 48 VDC 7.5 6,400 110 VDC 3.8 28,810 Approx. 420   Coil (6 poles)   Item Rated current (mA) Coil resistance (Ω) Max. voltage (V) Power consumption (mW) Rated voltage 12 VDC 41.7 288 110% Approx. 500 18 VDC 27.8 648 21 VDC 23.8 882 24 VDC 20.8 1,152 48 VDC 10.4 4,606 110 VDC 5.3 20,862 Approx. 580   Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.           2. The maximum voltage is based on an ambient operating temperature of 23°C maximum. Contacts   Load Resistive load Rated load 6 A at 250 VAC, 6 A at 30 VDC Rated carry current 6 A Max. switching voltage 250 VAC, 125 VDC Max. switching current 6 A Contact materials Au plating + Ag alloy   Characteristics Safety Relay Unit   Contact resistance *1 100 mΩ max. Operating time *2 20 ms max. Response time *3 10 ms max. Release time *2 20 ms max. Must operate voltage 75% max. Must release voltage 10% min. Maximumoperatingfrequency Mechanical 36,000 operations/h Rated load 1,800 operations/h Insulation resistance *4 1,000 MΩ min. DielectricStrength*5 *6 Between coiland contacts 4,000 VAC, 50/60 Hz for 1 min. Betweencontacts ofdifferent olarity 4,000 VAC, 50/60 Hz for 1 min. (except for followings)4 poles (for poles 3-4 in 4-pole Relays),6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min. Betweencontacts of thesame polarity 1,500 VAC, 50/60 Hz for 1 min. Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shockresistance Destruction 1,000 m/s2 Malfunction 100 m/s2 Durability*7 Mechanical 10,000,000 operations min. (at approx. 36,000 operations/h) Electrical 100,000 operations min. (at the rated load) Inductive load switchingcapability *8(IEC60947-5-1) AC15 240 VAC, 2 ADC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A Failure rate (P level)(reference value *9) 5 VDC, 1 mA Ambient operatingtemperature *10 12 to 48 VDC: -40 to 85°C (with no icing or condensation)110 VDC: -40 to 60°C (with no icing or condensation) Ambient operating humidity 5% to 85% Weight 4 poles: Approx. 22 g6 poles: Approx. 25 g     Note: 1. The above values are initial values.           2. Performance characteristics are based on coil temparature of 23°C.*1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.*2. These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not       included.*3. The response time is the time it takes for the normally open contacts to open after the coil voltage is turned OFF.       Contact bounce time is included. Measurement conditions: Rated voltage operation, Ambient temperature: 23°C*4. The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric       strength was measured.*5. Pole 3 refers to terminals 31-32 or 33-34, pole 4 refers to terminals 43-44, pole 5 refers to terminals 53-54, and       pole 6 refers to terminals 63-64.*6.When using a P7SA Socket, the dielectric strength between coil contacts/between contacts of different polarity is 2,500 　　VAC, 50/60 Hz for 1 min.  *7. The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%. For the durability       performance to the load, refer to the Durability Curve.*8. AC15: cosφ = 0.3, DC13: L/R = 48-ms.*9. The failure rate is based on an operating frequency of 300 operations/min.*10. 12 to 48 VDC:       When operating between 70 and 85°C, reduce the rated carry current of 6 A by 0.1 A for each degree above 70°C.  　　(See Fig. 1.)        110 VDC:       When operating between 40 and 60°C, reduce the rated carry current of 6 A by 0.27 A for each degree above 40°C.  　　(See Fig. 1.)   Options (order separately) Sockets   Model Push-In Plus terminals Screw terminals PCB terminals 4 poles 6 poles 4 poles 6 poles 4 poles 6 poles P7SA-10F-ND-PU P7SA-14F-ND-PU P7SA-10F(-ND) P7SA-14F(-ND) P7SA-10P P7SA-14P Ambient operating temperature P7SA-[]F-ND(-PU): -20 to +70°CP7SA-[]F: -40 to +85°C(with no icing or condensation) -40 to +85°C(with no icing or condensation) Ambient operating humidity 25% to 85% 5% to 85% Continuous carry current 6 A *1 Dielectricstrength Between coiland contactterminals 4,000 VAC for 1 min. 2,500 VAC for 1 min. Between contactterminals ofdifferent polarity 2,500 VAC for 1 min. Between contactterminals ofsame polarity 1,500 VAC for 1 min. Insulation resistance 1,000 MΩ min. *2 Weight Approx. 58 g Approx. 70 g Approx. 44 g Approx. 59 g Approx. 9 g Approx. 10 g   *1. When operating the P7SA-[]F-ND-PU at a temperature between 50 and 70°C, reduce the continuous current       (6 A at 50°C or less) by 0.25 A for each degree above 50°C.       When operating the P7SA-[]F-ND at a temperature between 50 and 70°C, reduce the continuous current       (6 A at 50°C or less) by 0.3 A for each degree above 50°C.       When operating the P7SA-[]F at a temperature between 50 and 85°C, reduce the continuous current       (6 A at 50°C or less) by 0.1 A for each degree above 50°C.*2. Measurement conditions: For 500 VDC applied to the same location as for dielectric strength measurement. Short Bars (for P7SA-[]F-ND-PU)   Application Applicablesockets Models Maximumcarry current Ambient operatingtemperature Ambient operatinghumidity Crossover wiring ofcontact terminals(bottom) P7SA-[]F-ND-PU XW5S-P2.5-2[] 24 A -40 to 55°C 5% to 95% XW5S-P2.5-3[] XW5S-P2.5-4[] XW5S-P2.5-5[]   Certified Standards Safety Relay Unit EN Standards, VDE Certified   Models Ratings Standard number Certification No. Operating coil Contact ratings G7SA-2A2B 12, 18, 21, 24, 48, 110 VDC EN/IEC 61810-1Electromagnetic relay EN 61810-3Relays with forcibly guided contacts 125547 12, 18, 21, 24, 48, 110 VDC 6 A, 240 VAC (Resistive)6 A, 30 VDC (Resistive) G7SA-3A1B G7SA-3A3B G7SA-4A2B G7SA-5A1B   UL Standards Certification (File No. E41515) Industrial Control Devices   Models Category Listed/Recognized Contact ratings Operating Coil ratings G7SA-2A2B E41515 Recognized 6 A, 250 VAC (Resistive)6 A, 30 VDC (Resistive) 12, 18, 21, 24, 48, 110 VDC G7SA-3A1B G7SA-3A3B G7SA-4A2B G7SA-5A1B   CSA standard CSA C22.2 No.14 Industrial Control Devices   Models Class number File No. Contact ratings Operating Coil ratings G7SA-2A2B 3211-07 LR35535 6 A, 250 VAC (Resistive)6 A, 30 VDC (Resistive) 12, 18, 21, 24, 48, 110 VDC G7SA-3A1B G7SA-4A2B G7SA-5A1B   South Korea S-mark certified (Rated voltage 24VDC only)   Models Applicable standard number G7SA-2A2B DC24 KS C IEC 61810-1 G7SA-3A1B DC24 G7SA-3A3B DC24 G7SA-4A2B DC24 G7SA-5A1B DC24   CQC   Models Standard number Certification No. G7SA GB/T, 21711.1 CQC14002119869   Sockets CE Marking Compliance   Models EMC Directive Low Voltage Directive Machinery Directive P7SA (Excluding -P type) Not applicable Applicable Not applicable P7SA-PU Not applicable Applicable Not applicable   The CE compliance declaration was made in combination with the Safety Relay. EN Standards, VDE Certified   Models Ratings Standard number Certification No. P7SA --- EN61984 40007586   EN Standards, TÜV Certified   Models Ratings Standard number Certification No. P7SA-PU --- EN61984 R50356981   UL Standards Certification (File No. E87929) Industrial Control Devices   Models Category Listed/Recognized P7SA SWIV2 Recognized P7SA-PU SWIV2, SWIV8 Recognized   CSA standard CSA C22.2 No.14 Industrial Control Devices   Models Class number File No. P7SA 3211-07, 3211-87 LR35535 P7SA-PU 3211-07, 3211-87 LR35535

Read more less

DELIVERY PERIOD : 1-2 WEEKS  ype Pre-set counter Size 1/16 DIN (48 x 48 mm) Counting functions Tachometer Counting range 0 - 999999 LCD backlight With backlight Number of digits 6 Body color Black Installation type Socket Terminal type Plug-in Output type Relay Relay output 1 Transistor output 0 Inputs DC voltage, No-voltage Supply voltage AC 100-240 V Speed 10000 Hz Product Width (unpacked) 48 mm Product Height (unpacked) 48 mm Product Depth (unpacked) 63.7 mm

Read more less

DELIVERY PERIOD : 1-2 WEEKS  The UM system takes the site into consideration Connectors make wiring simple Cables with connectors make wiring easy, even when multiple mats are used. Wiring for two Safety Mats Wiring for six Safety Mats Trim that takes wiring and maintenance into consideration The snap-type trim ensures proper cable installation and simplifies the maintenance and installation of mats. Broad product selection ensures compatibility with a wide variety of sites A variety of mat sizes are available. You can select mats that suit the protected area. * Mats sized in inches are also available for use in North America. Contact your dealer for more information about the models and delivery periods. Complies with international safety standards The safety mat has received EN ISO 13856-1 safety standard certification and complies with ANSI/RIA15.06 and other standards. Meets PLd/Safety Category 3 (EN ISO13849-1) requirements when used in combination with the safety controller G9SP or the safety mat controller MC3.

Read more less

  DELIVERY PERIOD : 1-2 WEEKS  Standby power reduced to 85% or less of previous models. (Applicable to 61F-GN.)  • Weighs only 85% or less of previous models. (Applicable to 61F-G3N/-G4N.)  • Easy identification of operating status with LED operation indicator.  • Increased reliability of internal relay (micro load: 5 VDC, 1 mA) to enable PLC input.  • Electrode terminals and other wiring terminals are separated for easy wiring.  • Select from three mounting methods: JEM, DIN rail mounting, or screw mounting.

Read more less

DELIVERY PERIOD : 1-2 WEEKS  Model G9SA-301/TH301 G9SA-501 G9SA-321-T[] Power supplyvoltage 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC100 to 240 VAC: 100 to 240 VAC, 50/60 Hz Operatingvoltage range 85% to 110% of rated power supply voltage Powerconsumption* 24 VAC/VDC: 5.7 VA/1.7 W max.100 to 240 VAC: 9 VA max. 24 VAC/VDC: 7.4 VA/2.6 W max.100 to 240 VAC: 11 VA max. 24 VAC/VDC: 8.6 VA/3.3 W max.100 to 240 VAC: 12.5 VA max.   * When an Expansion Unit is connected, the power consumption is increased by 2 VA/2 W max. Inputs   Model G9SA-301/321-T[]/TH301 G9SA-501 Input current * 40 mA max. 60 mA max   * When an Expansion Unit is connected, the input current is increased by 30 mA max. Contacts   ModelLoad G9SA-301/501/321-T[]/TH301/EX301/EX031-T[] Resistive load Rated load 250 VAC, 5 A30 VDC, 5 A Rated carry current 5 A   Characteristics   Model G9SA-301/TH301 G9SA-501/321-T[] G9SA-EX301/EX031-T[] Contact resistance *1 100 mΩ Operating time *2 30 ms max. Response time *3 10 ms max. Isolationspecification Isolation voltage (Ui) 250 VAC Impulse withstand voltage (Uimp) 4 kV Insulationresistance*4 Between input andoutput 100 MΩ min. (at 500 VDC) Between differentpoles of output Dielectricstrength Between input andoutput 2,500 VAC 1min. Between differentpoles of output Vibration resistance 10 to 55 to 10 Hz, 0.375-mm single amplitude(0.75-mm double amplitude) Shockresistance Destruction 300 m/s2 Malfunction 100 m/s2 Durability *5 Mechanical 5,000,000 operations min. (at approx. 7,200 operations/hr) Electrical 100,000 operations min. (at approx. 1,800 operations/hr) Failure rate (P Level) (reference value) 5 VDC, 1 mA Ambient operating temperature -25 to 55°C (with no icing or condensation) Ambient operating humidity 35% to 85% Terminal tightening torque 0.6 N·m Weight *6 Approx. 210 g Approx. 270 g Approx. 130 g   *1. The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.*2. Not Including bounce time.*3. The response time is the time it takes for the main contact to open after the input is turned OFF. Includes bounce time.*4. The insulation resistance was measured with 500 VDC at the same places that the dielectric strength was checked.*5. The durability is for an ambient temperature of 15 to 35℃ and an ambient humidity of 25% to 75%.*6. Weight shown is for 24-VAC/VDC type. For 100 to 240-VAC type, add approximately 20 g.
